Pvc Pipes By Precision Storage Vessels Pvt. Ltd.
Price:
Get Latest Price
In Stock
Product Specifications
| Features | Durable pipes, Non-toxic material, Smooth interior, High pressure, Multiple sizes, Easy installation, Cost effective, Long lasting |
| Length | Customizable |
| Material | PVC |
| Pressure ratings | Multiple |
| Sizes | 20mm-110mm |
| Standards | IS 4985, DIN 8062 |
| Wall thickness | Varied |
| Weight | Size dependent |
Product Overview
Key Features
PVC Pressure pipes as manufactured as per IS 4985-2000 , DIN 8062 standards for irrigation sewage water and plumbing pipes with Sizes from 20 mm to 110 mm. We have independent lab facility with all testing instrument to test the pipe manufactured.
Our Process ; In first stage of the extruder the powder is subjected to relatively high mechanical forces which are intended to reduce the pvc grains clusters .The rate at which this process occurs depends upon the temperature & lubricant balance. The internal lubricant will tend to encourage the breakup of the grain by weakening the bonds between the primary particles
The external lubricant reduces the frictional heat & therefore reduces this mechanism. As the material passes further down the extruder barrel the temperature increases which reduces the bond strength between the molecules within the primary particles. Ultimately a homogeneous mass of molten plastics form.
Unique features of our pipes are Non Toxic, Smooth inside bore, Non biodegradable, flexible.
Wall thickness exceeds the requirements of related standards.
| PVC PIPE WEIGHT / MTR FOR POTABLE WATER SUPPLIES - (Is 4985 : 2000) | ||||||||
| O.D. | Class -I | Class -II | Class -III | Class -IV | ||||
| Wall Thk | Kg/Mtr | Wall Thk | Kg/Mtr | Wall Thk | Kg/Mtr | Wall Thk | Kg/Mtr | |
| 16 |
|
|
|
|
|
| 1.5 | 0.1 |
| 20 |
|
|
|
|
|
| 1.5 | 0.13 |
| 25 |
|
|
|
|
|
| 1.8 | 0.19 |
| 32 |
|
|
|
|
|
| 2.2 | 0.3 |
| 40 |
|
|
|
| 1.8 | 0.31 | 2.7 | 0.46 |
| 50 |
|
|
|
| 2.1 | 0.45 | 3.3 | 0.7 |
| 63 |
|
|
|
| 2.7 | 0.73 | 4.1 | 1.09 |
| 75 |
|
|
|
| 3.1 | 1 | 4.9 | 1.55 |
| 90 | 1.7 | 0.67 | 2.6 | 2.6 | 3.7 | 1.43 | 5.7 | 2.17 |
| 110 | 2 | 0.97 | 3 | 3 | 4.3 | 2.04 | 7 | 3.26 |
PR63ESSURE APPLICATION BS 3505 & BS 350
| Nominal size | Mean Outside Diameter (mm) | Wall thickness (mm) & Pressure Rating (BAR) | ||||||||
| Class B | Class C | Class D | Class E | |||||||
| 6 BAR | 9 BAR | 12 BAR | 15 BAR | |||||||
| Inch | Min. | Max | Min. | Max | Min. | Max | Min. | Max | Min. | Max |
| 1/2 | 21.2 | 21.5 |
|
|
|
|
|
| 1.7 | 2.1 |
| 3/4 | 26.6 | 26.9 |
|
|
|
|
|
| 1.9 | 2.5 |
| 1 | 33.4 | 33.7 |
|
|
|
|
|
| 2.2 | 2.7 |
| 1 1/4 | 42.1 | 42.4 |
|
|
|
| 2.2 | 2.7 | 2.7 | 3.2 |
| 1 1/2 | 48.1 | 48.4 |
|
|
|
| 2.5 | 3 | 3.1 | 3.7 |
| 2 | 60.2 | 60.5 |
|
| 2.5 | 3 | 3.1 | 3.7 | 3.9 | 4.5 |
| 2 1/2 | 75 | 75.3 |
|
| 3 | 3.5 | 3.9 | 4.5 | 4.8 | 5.5 |
| 3 | 88.7 | 89.1 | 2.9 | 3.4 | 3.5 | 4.1 | 4.6 | 5.3 | 5.7 | 6.6 |
| 4 | 114.1 | 114.5 | 3.4 | 4 | 4.5 | 5.2 | 6 | 6.9 | 7.3 | 8.4 |
PRESSURE APPLICATION DIN 8061/8062:DIN 19532
| Nominal size | Mean Outside Diameter (mm) | Wall thickness (mm) & Pressure Rating (BAR) | ||||||||
| Series 2 | Series 3 | Series 4 | Series 5 | |||||||
| (4 Bar / PN 4) | (6 Bar / PN 10) | (10 Bar / PN 16) | (16 Bar / PN 16) | |||||||
| Mm | Min. | Max | Min. | Max | Min. | Max | Min. | Max | Min. | Max |
| 20 | 20 | 20.2 |
|
|
|
|
|
| 1.5 | 1.9 |
| 25 | 25 | 25.2 |
|
|
|
| 1.5 | 1.9 | 1.9 | 2.3 |
| 32 | 32 | 32.2 |
|
|
|
| 1.8 | 2.2 | 2.4 | 2.9 |
| 40 | 40 | 40.2 |
|
|
|
| 1.9 | 2.3 | 3 | 3.5 |
| 50 | 50 | 50.2 |
|
| 1.5 | 1.9 | 2.4 | 2.9 | 3.7 | 4.3 |
| 63 | 63 | 63.2 |
|
| 1.9 | 2.3 | 3 | 3.5 | 4.7 | 5.4 |
| 75 | 75 | 75.3 | 1.5 | 1.9 | 2.2 | 2.7 | 3.6 | 4.2 | 5.6 | 6.4 |
| 90 | 90 | 90.3 | 1.8 | 2.2 | 2.7 | 3.2 | 4.3 | 5 | 6.7 | 7.6 |
| 110 | 110 | 110.3 | 2.2 | 2.7 | 3.2 | 3.8 | 5.3 | 6.1 | 8.2 | 9.3 |
Company Details

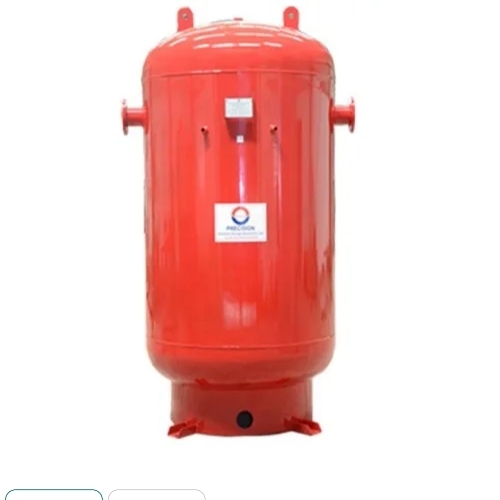

PRECISION STORAGE VESSELS PVT. LTD. is listed in Trade India's list of verified sellers offering supreme quality of Carbon Steel Water Tanks, Chilled Water Buffer Tanks, Heavy Duty Horizontal Water Tanks, etc. Buy Water Tanks in bulk from us for the best quality products and service.
Business Type
Exporter, Manufacturer, Supplier
Employee Count
50
Establishment
2000
