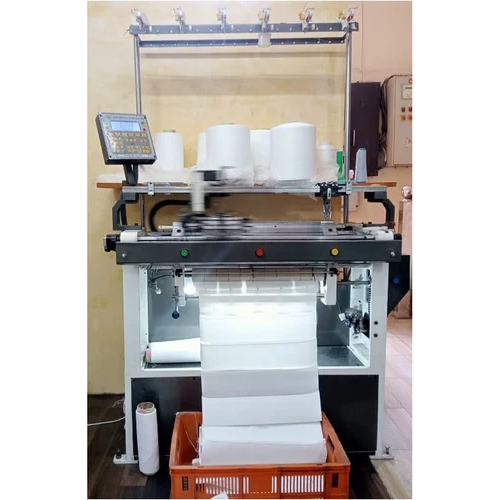

Power Flat Knitting Machine By H.s. Mechanical Works

We are leading manufacture of Power Flat Knitting Machine in Ludhiana, Punjab, India.

Features

Superior quality by precise machining
Compact & sturdy design
Smooth & noiseless performance
User-friendly mechanism
PLC based operating system
Full stainless steel cladding confirming to GMP standards
Very less change over time
Superior Perforation System
Excellence Through Innovations
Commitment for Quality
Team Work
Timely Delivery & Service
Ethics

Technical Specifications

Model : HG 70, 100, 110, 130, 150
Knitting Width : 28, 40, 44, 52, 60, 72, 80
Gauge : 5, 7, 8, 10, 12, 14, 16
Knitting Speed : 0.6/1.0M/Sec.(Knitting speed varies according to gauge, yarn & knitting conditions)
Yarn Guide / Feeder : Four Yarn Guide/Feeder (Six Feeder on Order)
Cam System : Tuck System both Front & Rear, High Butt and Low Butt (Seprate Centre Cam)
Stitch Density : Mechanical Operated
Command : Electronic Controlled by Steeper Motor
Power : 0.75 kw (Motor)
Racking System : 1 to 5 Left, Half Needle Rack also available at one time
Stop Motion : Top Yarn Break, Needles Break Shock, Overload, Fabrics Falling, Fabrics Rollover, Side Yarn Left or Right Knot or Shock
Needle : High Butt and Low Butt
Drive : AC Motor Controlled by Inverter AC 220 Single Phase, 50 Hz.
Design Storage Capacity : 30 Files
