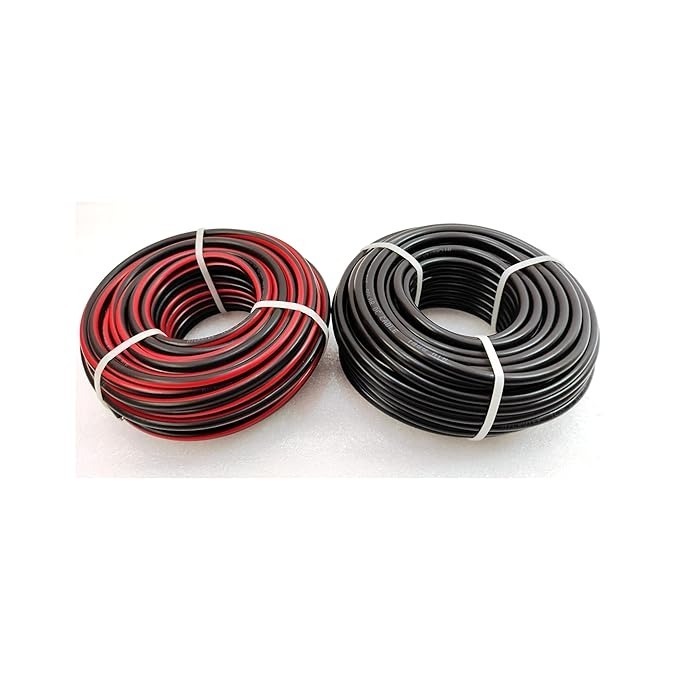

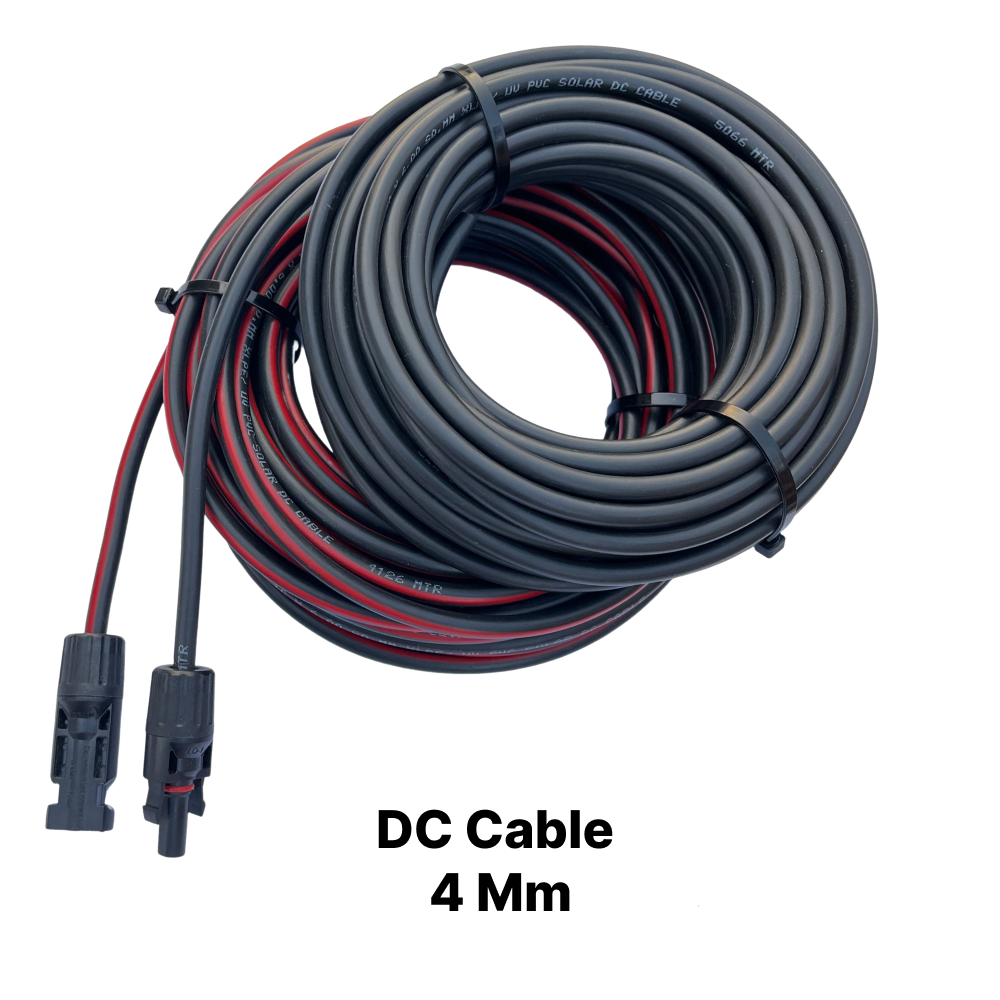

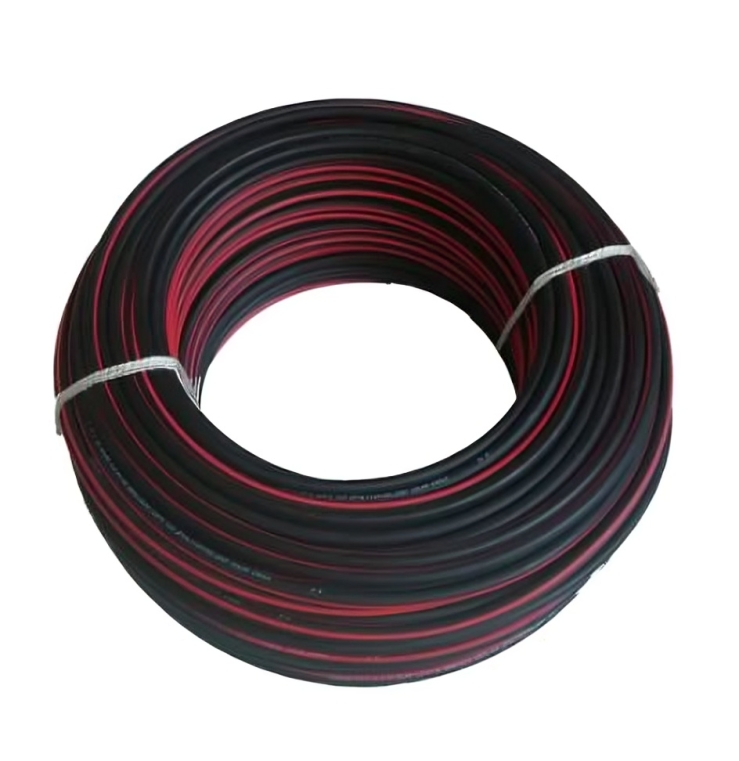

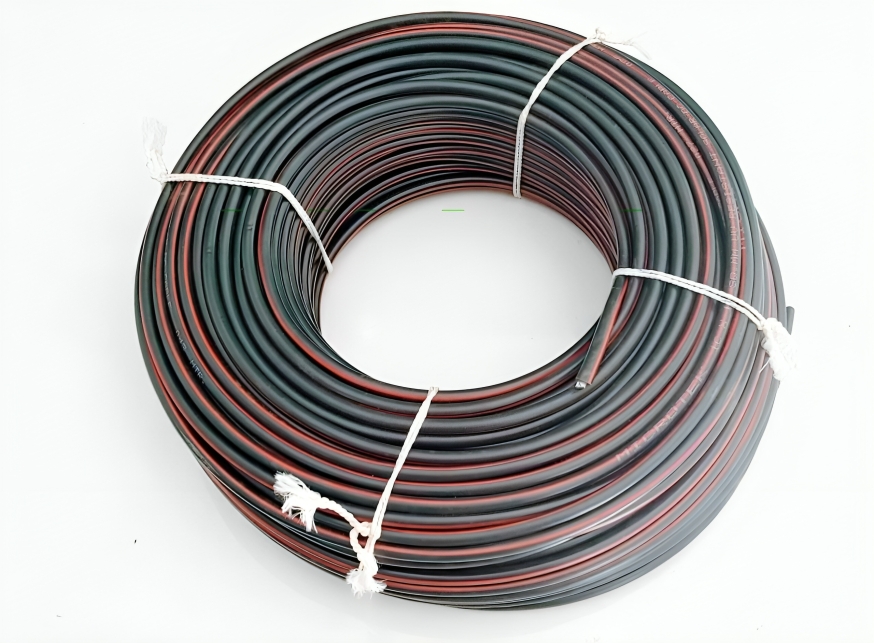

Polycab Dc Cable

Price:

Get Latest Price

In Stock

Product Specifications

Cable Type	Single Core / Twin Core Flexible DC Cable
Weight	Varies with size, typically 20-35 kg/roll
Usage & Applications	Solar Photovoltaic Power Transmission, Outdoor PV System Wiring, Interconnection between Solar Panels & Inverters
Diameter	Approx. 6.8 mm for 4 sq.mm; Varies with size
Impedance	Not Applicable / As per requirement
Conductor Type	Stranded
Features	UV Resistant, Weatherproof, Flame Retardant, High Flexibility, RoHS Compliant, Excellent Mechanical Strength
Insulation	XLPO (Cross Linked Polyolefin)
Core Number	Single Core, Twin Core
Operating Temperature	-40C to +90C
Number of Conductor	1 Core & 2 Core Options Available
Tensile Strength	12.5 N/mm2 (Min. for Insulation & Sheath)
Dielectiric Strength	6.5 kV (DC), 3.5 kV (AC)
Install Type	Fixed, Flexible, Outdoor, Rooftop
Core Material	Tinned Copper
Conductor Shape	Other, Circular
Armored Material	Unarmored
Rated Temperature	-40C to +90C (Operation), Up to 120C (Short Circuit)
Product Type	Solar DC Cable
Length	100 meters (Standard Roll), Custom lengths available
Voltage	Other, 1500 V DC (Test Voltage up to 6500V)
Insulation Material	Other, Electron Beam Cross Linked Polyolefin (XLPO), HR PVC
Application	Other, Solar Power Plants, Photovoltaic Installations, DC Distribution
Conductor Material	Other, Electrolytic Grade Annealed Tinned Copper
Jacket Material	Other, UV Resistant Polyolefin (XLPO), HR PVC Outer Sheath
Storage Temperature	-20C to +60C
Connector Color	Black / Red
Shield Material	Not Shielded (Unshielded)
Jacket Color	Other, Black, Red
Dimension (LWH)	Customized as per cable specification
Material	Tinned Copper, XLPO (Insulation & Sheath)
Color	Black, Red (As per PV standard)
Size	1.5 sq.mm, 2.5 sq.mm, 4 sq.mm, 6 sq.mm (standard), up to 16 sq.mm
