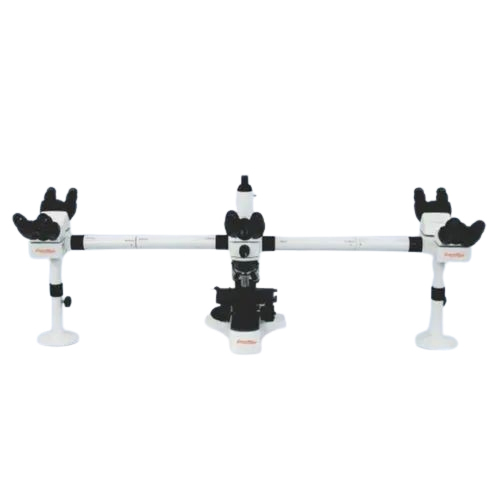

Penta Orthro Microscope By Technical Resources

Eyepiece

WF 10x/22-5 pairs

Optical system

Infinity corrected plan optical system with Din standard optics (True colour)

Observation head

One number high transmission sidentopf Trinocular head 30o inclined. Compensation free, 360 degree rotatable. Four numbers compensations free Binocular head inclined 30 Degree and 360 degree rotatable.

Light pointer

A moveable built in green led pointer (Brightness adjustable) is supplied as a standard accessory.

Eyepiece

Ultrawide field and compensating WF 10X paired eyepiece (Field no. 22)-5 pairs

Plan objective

Infinity corrected super plan objectives PLY4X, PLY10X, PLY40X, PLY100X (Anti Fungus)

Focusing

Low and forward position. Co-axial and fine focusing mechanism supported on ball bearing with tension control and pre-focus stopper. Coarse focus 30mm. Fine motion reading to 0.002mm

Nose piece

Inward revolving quintuple nose piece with ball bearing system for perfect alignment.

Stage

Super hard coated large mechanical stage 185x145mm with low position co-axial X-Y motion controls. X-Y motion 75mm x 55mm

Illumination

Koehlers illumination with 12V/50W super bright halogen lamp with variable control

Magnification

40X-1000X standard, Optionally up to 2000X

Optional

Automatic photography and video equipments, Computer compatible

Condenser

Swing out condenser N.A 0.9/0.25, to provide perfect illumination under all magnification to all the observers.
