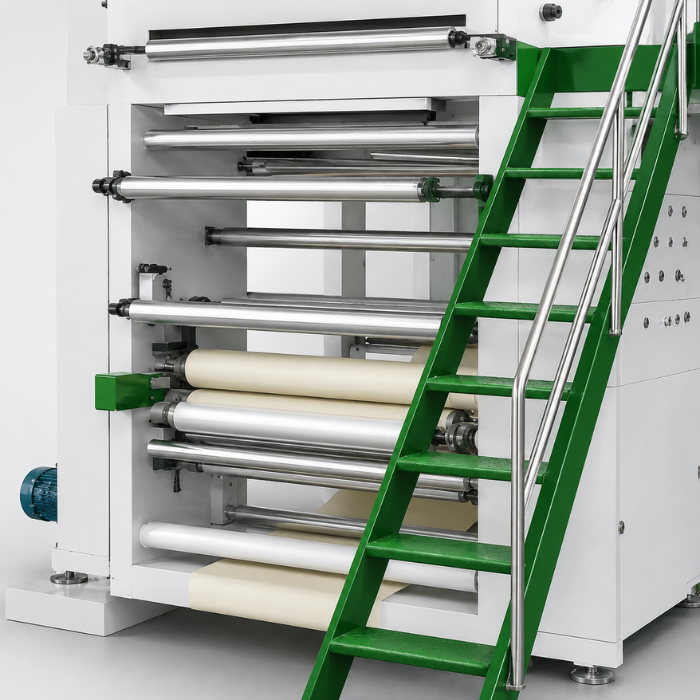

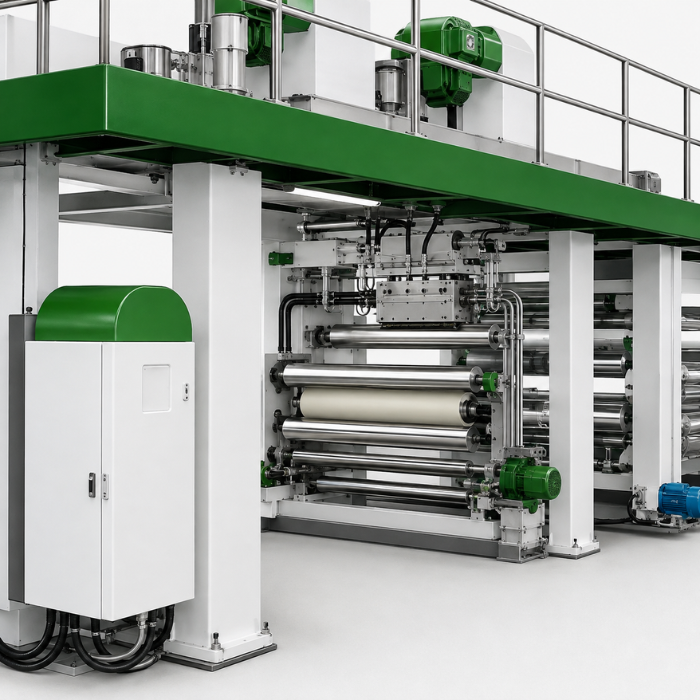

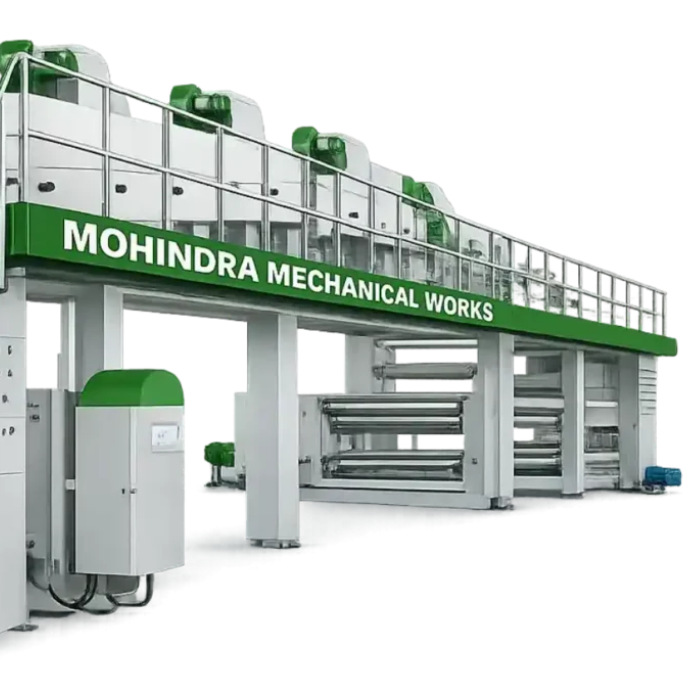

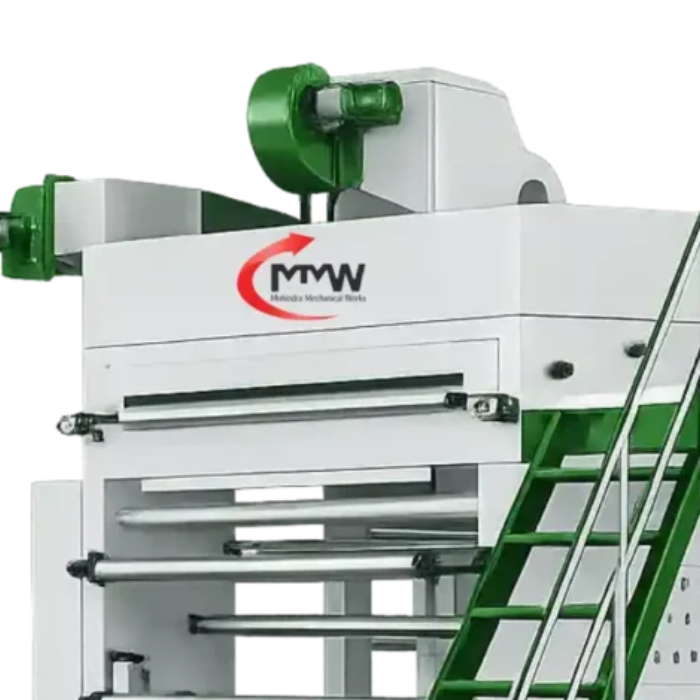

Kraft Paper Liner Coating Machine - Coating Head: Mayer Bar

Kraft Paper Liner Coating Machine - Coating Head: Mayer Bar

Name: Kraft Paper Liner Coating Machine
Price: 2360000 INR
Availability: InStock

Price: 2360000.00 INR / Piece

(2000000.00 INR + 18% GST)

Get Latest Price

MRP:

2360000.00 INR / Unit

Weight :

12000.00 Kilogram

1 Pack Contains :

Minimum Pack Size :

In Stock

-1+

Product Specifications

Max. Sheet Area	32 Inches
Sheet Thickness	80 400 GSM
Coating Transfer Method	Mayer Bar Coating
Max. Coating Area	Full Web Width
Coating Format	Roll-to-Roll
Coating Type	Kraft Liner Surface and Barrier Coating
Varnish Type	Water-Based Coating
Registration	Automatic Web Alignment
Min. Sheet Area	As per Customer Requirement
Feeding Type	Continuous Roll Feeding
Machine Speed	Up to 150 m/m
Color	Green, White or Customized
Power Requirement	120 200 kW
Product Type	Kraft Paper Liner Coating Machine
General Use	Applying Functional Coating on Kraft Liner Paper
Material	Stainless Steel
Type	Other, Industrial Coating Machine
Weight (kg)	12000 Kilograms (kg)
Coating Speed	150 m/m
Coating Head	Mayer Bar
Coating Width	1600 Millimeter (mm)
Coating Material	Other
Computerized	Yes
Automatic	Yes
Control System	PLC Control
Power Source	Electric
Power Consumption	120 200 Kilowatt (kW)
Heating System	Hot Air
Drive Type	Pneumatic
Voltage	440v Volt (v)
Humidification System	No
Glue Type	Water Based
Rewinder Type	Duplex Rewinder
Unwinder Type	Duplex Unwinder
Rewinding Width	Up to 1600 Millimeter (mm)
Unwinding Width	Up to 1600 Millimeter (mm)
Dimension (LWH)	1800 450 500 Centimeter (cm)
Feature	High Precision, Low Energy Consumption, High Speed, Coating
Warranty	1 year
FOB Port	ICD Tughlakabad, Delhi
Payment Terms	Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability	2 Per Month
Delivery Time	90 Days
Sample Available	No
Sample Policy	Contact us for information regarding our sample policy
Packaging Details	The machine is covered with waterproof protective wrapping. Electrical panels, coating assemblies, rollers, motors and sensitive components are properly protected. Major sections are securely fastened on wooden or steel supports to ensure safe transportation by road or sea. Export-worthy packaging can be provided according to customer requirements.
Main Export Market(s)	Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market	Delhi
Certifications	ISO 9001:2015 Certified, CE Certified Standard Machinery
Brand Name	MOHINDRA MECHANICAL WORKS
Unit Type	Unit/Units
Mop	1
Pkg Box Length	1800.00 cm
Shipping Type	actual
Moq	1
Pkg Box Height	500.00 cm
Packsize	1
Color	Green, White or Customized
Product Unit	1 Unit/Units
Stock Quantity	5
MRP	2360000.00 INR
GSTIN	18%
Price	2000000.00 INR (Approx.)
Pkg Box Breadth	450.00 cm
Weight	12000.00 Kilogram
Returnable	No
Currency	INR
Price Type	fixed
Minimum Ordered Packs	1
Minimum Order Quantity	1
