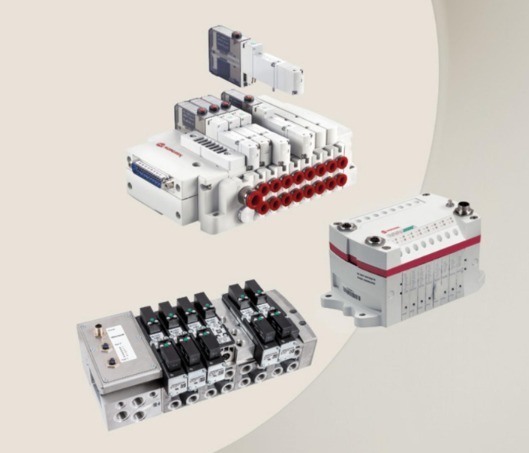

Manifold Valve System For Fiber Laser Cnc Machines - Application: Industrial

Gas manifold systems are used in laser machines (such as CNC laser cutting systems) to control and distribute gases like oxygen (O), nitrogen (N), and air for cutting, purging, and assist-gas operations.

Key Components:
Inlet & Outlet Ports:

Inlet: 1/4", 3/8", or 1/2" BSP/NPT (as per design)

Outlet: Multiple ports (2, 4, 6, 8-way available)

Material:

Body: Stainless Steel / Brass (nickel-plated)

Seals: NBR / FKM / EPDM depending on gas type

Pressure Rating:

Maximum Inlet Pressure: 10 bar to 25 bar

Outlet Pressure: 0.5 to 10 bar (adjustable via regulator)

Flow Control:

Equipped with flow control valves or needle valves

Pressure regulators (manual or automatic)

Gas Compatibility:

Suitable for Oxygen, Nitrogen, Air, CO

Cleaned for oxygen service (if used for O)

Optional Features:
Pressure gauge (010 bar or 025 bar)

Solenoid valve integration

Over-pressure safety valve

Mounting bracket or base

Digital display for flow/pressure monitoring

Mounting & Dimensions:
Compact Panel Mount or Wall Mount

Size varies by port count (2-way: 150mm; 8-way: 400mm)

Applications:
CNC Laser Cutting Machines

Fiber & CO Laser Systems

Sheet Metal Fabrication Units

Brands Available:
SMC Japan (for high-quality pneumatic and gas control components)

Custom CNC Integrators (locally manufactured or OEM units)
