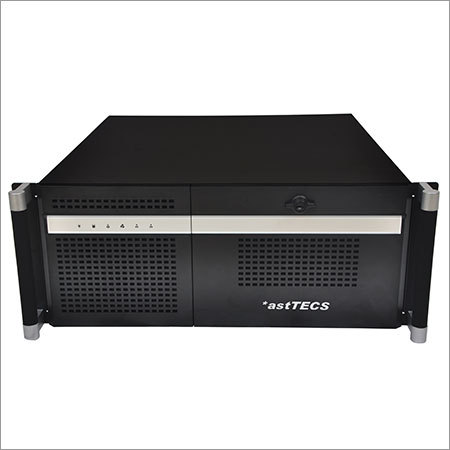

Ip Pbx Equipment

 IP PBX

This package consists of features that can be adapted to suit all requirements, from small to large enterprises.

• Mini PBX - IP PBX for up to 10 subscribers, asterisk installed.
• Ast e25 - IP PBX for up to 25 subscribers, asterisk installed.
• Ast e100 - IP PBX for up to 100 subscribers, asterisk installed.
• Ast e300 - IP PBX for up to 300 subscribers, asterisk installed.
• Ast e500 - IP PBX for up to 500 subscribers, asterisk installed.
• Ast e1000 - IP PBX for up to 1000 subscribers, asterisk installed.

Add on features:

• GSM integration
• PRI integration
• V Logger - Voice logger, a digital multi-channel voice logging, call monitoring and recording software.
• CRM – a Customer relationship management software
• Receptionist console - The Receptionist Console provides a user interface for receptionists to take and direct call

Interfaces:

• Network interface: 2X Ethernet 10/100 base-RJ-45
• ISDN: PRI interface (optional)
• Mobile: 4GSM (optional)o 1 antenna/4 channels, o 1 SIM/channel

Protocols:

• VoIP: SIP, H.323, MGCP, SCCP, IAX 2
• SDN: PRI DSS 1 (Q931, National variant)
• Mobile: GSM 850/1800/1900 MHZ channels.

Codecs:
ADPCM, G.711(A-& u-Law, G.722, G.723.1 (pass through),G.726, G.729(through purchase of a commercial license), GSM,iLBC, Linear,LPC-10 Speex
PRI Card:
T1 / E1 port with optimum PCI interface.
Dimensions:
4U form factor chasis.
Power:
800 MA peak, operational 300 mA max at +3.3 V ;4U – 100-240 VAC, 200 W
Size:
4U: 483x177x450 mm
Mounting:
19" Rack
Temperature Range:
0-50°C

*astTECS IP PBX Highlights

• Video Conferencing
• Fax support
• Audio Conference Bridging instead of Conferencing Bridging
• Open Source Asterisk IP PBX
• Interactive Voice Response (IVR)
• Built-in call recording
• Voice Mail to
• Conference Bridging
• Distributed office set up
• Centralized Administration
• Call Detail Report
• Web based receptionist console
• GSM Integration
• Parallel Ringing
• Voice Logger
