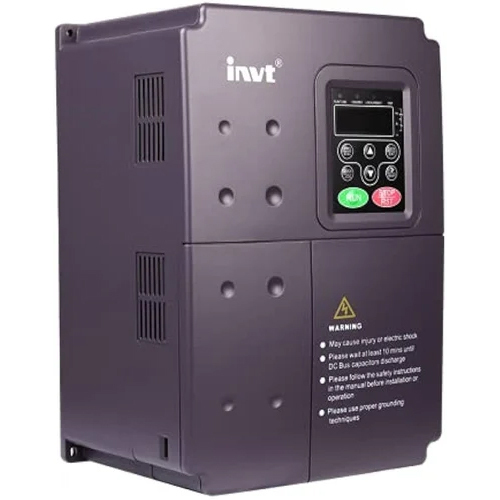

Invt Vfd at 7080.00 INR at Best Price in Barasat, West Bengal

Invt Vfd - Application: Industrial

Price: 7080.00 INR / Piece

(6000.00 + 18% GST)

Get Latest Price

Weight :

500.00

1 Pack Contains :

Minimum Pack Size :

In Stock

-1+

Product Specifications

Weight	800 Grams (g)
Warranty	1 YEAR
No Of Poles	3/1
Shape	RECTANGULAR
Phase	3 PHASE & 1 PHASE
Product Type	VFD
Application	INDUSTRIAL
Protection Level	IP54
Frequency (MHz)	50 Hertz (HZ)
Rated Voltage	415 Volt (V)
Output Type	3 Phase
Energy Consumption	100 Watt Hour (Wh)
Color	Black
Material	Plastic
Payment Terms	Cash in Advance (CID)
Main Domestic Market	All India
Delivery Time	1 Week
Supply Ability	100 Per Week
Packaging Details	Carton Box
Sample Policy	Contact us for information regarding our sample policy
Weight	500.00
Gst	18
Is Returnable	1
Unit	10
Unit Type	Piece/Pieces
Moq	10
Mrp	7080.00
Price	6000.00
Selling Price	6000.00
Brand Name	INVT
Currency	INR
Packsize	1
Mop	1
Shipping Rate	4.00
Is Freight Charges	true
Delivery Time	1
Delivery Time Unit	10
GSTIN	18%

Product Overview

Key Features

Series	Control Mode	Typical Power Range (400V 3-Phase)	Key Features & Applications
GD200A	V/F, Sensorless Vector Control (SVC)	$0.75 kW to 500 kW$	Versatile, high reliability. Suitable for general-purpose loads like fans, pumps, air compressors, plastic machinery, extruders. Features include: high starting torque ( $0.5 Hz /150%$ SVC), built-in braking unit (up to $30 kW$ ), and independent air duct design.
GD20	Open Loop Vector Control	$0.75 kW to 110 kW$	High-performance mini-vector drive. Compact, user-friendly, excellent drive and control performance for a variety of general industrial applications.
GD10	Mini Economic Drive	$0.2 kW to 2.2 kW$	Mini and economic series. Suitable for simple applications like packaging, food, textile, and carving machinery.

2. High-Performance/Advanced VFDs

Series	Control Mode	Typical Power Range (400V 3-Phase)	Key Features & Applications
GD35	High-Performance Closed-Loop Vector Control	$1.5 kW to 500 kW$	Supports both induction and permanent magnet synchronous motors. Features high-accuracy speed, torque, and position control, rigid tapping, and simple servo functions. Ideal for CNC machine tools, textile, printing, and high-precision applications.
GD350	High-performance & Multifunction	$1.5 kW to 500 kW$	Advanced, intelligent multi-function VFD. Caters to demanding control requirements and Industry 4.0 applications with high precision and scalability.

3. Dedicated and Medium Voltage VFDs

Series	Application	Key Features
GD100-PV, BPD Series	Solar Water Pumping	High MPPT efficiency, supports single/three-phase 220V/380V pumps, designed for remote and off-grid solar applications.
GD350-19 Series	Crane/Lifting	Integrated rich lifting-specific control functions, STO (Safe Torque Off), anti-sway, loose rope protection, high torque at low frequencies.
GD5000 Series	Medium Voltage Drive	Designed for large industrial loads in mining, metallurgy, petrochemical, etc., with voltage levels like $3 kV, 6 kV, and 10 kV$ .

To get the most accurate and specific technical details, you would need to specify the exact INVT VFD model number (e.g., GD200A-004G-4, GD10-2R2G-S2-B) as specifications like voltage, phase, and motor power rating are model-dependent.

A typical full VFD specification sheet includes:

Input/Output Voltage and Phase: E.g., Input: $3 Phase 380 440 V$ ; Output: $3 Phase 0 to 440 V$ .
Motor Power Rating: E.g., $4 kW /5 HP$ .
Rated Output Current.
Output Frequency Range: Typically $0 Hz to 400 Hz$ .
Control Modes: V/F Control, Sensorless Vector Control (SVC), Closed Loop Vector Control (CLVC).
Overload Capacity: E.g., $150%$ of rated current for $60$ seconds.
I/O Terminals: Number of digital inputs, analog inputs/outputs, relay outputs.
Communication: Standard (e.g., RS485/Modbus-RTU) and optional fieldbus cards.
Protection Level: E.g., IP20, IP55.
Braking: Built-in braking unit or external options.
