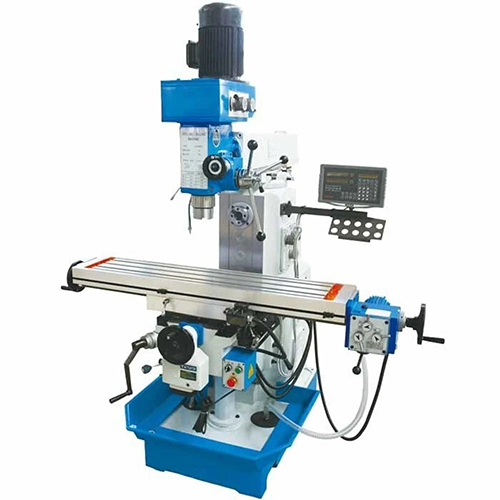

Horizontal And Vertical Milling Machine - Dimension (L*w*h): 1900x1720x1750 Millimeter (Mm)

Model - 6036
Standard Accessories Included
1. Vertical milling head
2. Mill chuck
3. 7:24 Middle-sleeve
4. Wrench S22-24
5. Inner-hexagonal spanners
6. Machine Vice 6"
7. Horizontal milling arbor, Dia. 40
8. Horizontal draw bar
9. Vertical draw bar 10.Hexagon nut
11.Operational manual
12.Quality certificate

Optional Accessories (Extra)
1. 3 Axis DRO with suitable linear scales and fittings (Rs 34000)
2. Semi universal dividing head with 6" chuck and tail stock(Rs 46300)
3. H-V rotary table 10" dia with indexing plates(Rs 21700)

Tech Details :
Spindle Taper : ISO50
Distance spindle to table surface : 0-400 mm
Distance between spindle center to vertical guide way : 175 mm
Spindle speed/Steps : 30-1500 rpm/12 steps
Table size : 1500 x360 mm
Table travel Longitudinal : 950 mm
Table Travel Cross : 320 mm
Table Travel Up and down : 400 mm
Worktable Vertical, Cross mobile : 22555 mm/min 8 level
Feed speed (Max speed (Rapid)) : 810 mm/min
Worktable T Slots Number : 3
Worktable T Slots Width : 18 mm
Worktable T Slots Distance : 80 mm
Motor : 4 kW
Worktable mobile feed motor : 750 W
Cooling pump motor : 90 W
Overall dimensions : 1900x1720x1750
Weight (N.W/G.W) : 2400 / 2500 kg.
Model : X6036
