H.t. Automatic Voltage Controller at Best Price in Faridabad

H.t. Automatic Voltage Controller

Price:

Get Latest Price

In Stock

Product Overview

Key Features

H.T. AUTOMATIC VOLTAGE CONTROL (AVC)
Capacity: 11/33 KV upto 5000 KVA

HT Automatic Voltage Controller is installed on the incoming side of the Transformer and provides stabilized input voltage to the Distribution Transformer. GLOBE'S H.T. Automatic Voltage Controllers are suitable for many varied applications and can be installed either indoor or outdoor.

CONSTRUCTION OF HT AVC

Globe's H.T. AVC primarily consists of the following:

Step Down Transformer

Buck / Boost Transformer.

Linear, Plus / minus type vertical Voltage Regulator.

Electronic Control Circuit.

Step Down & Buck / Boost Transformer : Inour Step Down & Buck / Boost Transformer we are using CRGO lamination to Transformer are wound with heavy section of electrolytic copper strips / conductor to minimize copper losses for getting better efficiency of the equipment. The Buck / Boost & Step Down Transformers are housed in same sheet steel tank. Radiators are provided for effective cooling.

Linear, Plus / minus type vertical Voltage Regulator: In our regulator we are using heavy section of electrolytic rectangular copper strips to minimize the losses and increase the efficiency of equipment. We are also using self lubricating Carbon Roller assemblies which offers more reliability and trouble free performance of the equipment. Regulator is housed in separate sheet steel tank. The coils of Voltage Regulator are vaccum impregnated and oven dried as IS.

Electronic Control Circuit. : Globe's HT AVC consists of very simple electronic control circuit for monitoring and controlling voltage, repair & maintenance of which is very easy

ADVANTAGES OF INSTALLING HT AUTOMATIC VOLTAGE CONTROLLER

HT AVC supplies rated Stabilized Voltage to the Transformer, thereby the utilization of the transformer will be up to full rated capacity and is protected from High/Low voltage fluction.

Where Nos. of Distribution Transformer are installed in a plant, you can put only one HT Automatic Voltage Controller (Regulator).

Reduction in Breakdown of Electrical Equipments.

Power Saving (Reduction in Power Bills).

Unifrom Quality of end products.

Improvement in power factor and reduction in MDI.

Better efficiency in plant.

80% Depreciation as per Income Tax Act.

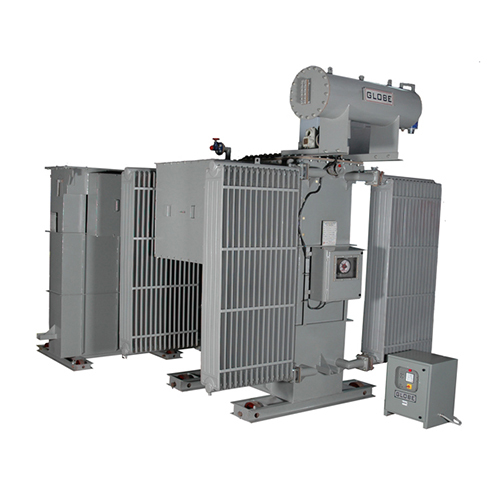

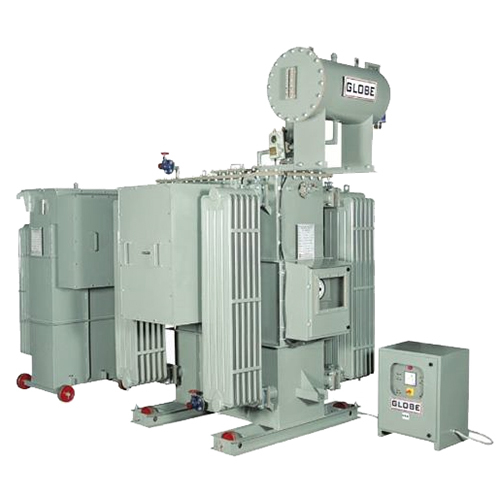

TRANSFORMER WITH BUILT in HT AVC: GLOBE make Transformer with Built in HT Automatic Voltge Controller is a unique product. The equipment is basically a combination of Standard Distribution Transformer and HT Automatic Voltage Regulator. The Fluctuating Voltage from 'Grid' is initially stabilized by HT AVR and then fed to the transformer resulting in the constant LT output within +- 1% Accuracy.

APPLICATIONS

Though Automatic Voltage Controllers are useful for any kind of application, these are most suitable for 24 hours continuous process plants where breakdowns due to fluctuation results in heavy financial losses. These includes:

High Rise Buildings

Call Centres

Multiplexes

Hospitals

Hotels

Nuclear Power projects & Research Centres

Steel Plants

Furnances

IT industries

Tea Gardens

Food Processing Units

Paper Mills

Textile Mills

Rubber Industries

PAYBACK PERIOD

Owing to its high efficiency and associated benefits, the payback period for the cost of Globe's HT Automatic Voltage Controller is from 6-12 months depending upon the input voltage variation and number of working hours of the plant. The HIGHER the input the SHORTER will be the payback period.
