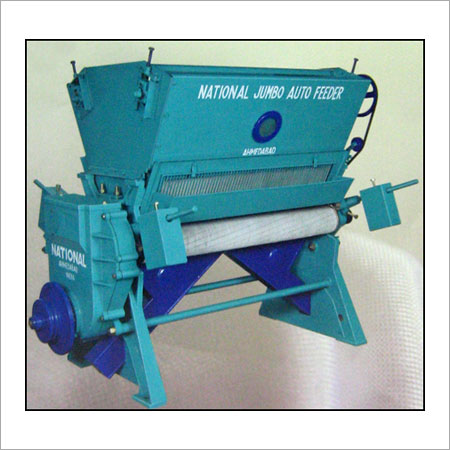

Ginning Machine - High Modularity Ductile Iron, 60-75 Kg Production Capacity, 5 H.p. Power Requirement | Operational Fluency, Low Power Consumption, 915 Kg Weight

We supply Ginning Machine that is fabricated using quality tested raw material. The production capacity of these machines ranges from 60 to 75 kg. Our range comes in different specifications and configurations to meet the requirements of clients. These are known for operational fluency, low power consumption and durability.

Specifications:
1. Production capacity per one hours (approx.)Jumbo Model : 60 to 75 Kg
2. Power required : 5 H.P.
3. Length of the Machine : 2150 mm
4. Type & Nos. of Driving Belts : 2 Nos. V-Belts
5. Type & Nos. of Bearings : 21 Nos. (16 Ball Bearing, 2-Roller
Bearings & 3-Needle Roller Bearings)
6. Type & Consumption of Lubrication : 150 Gms. Grease per 8 hrs.(approx.)
7. Driving of Roller Shaft : By helical gears
8. Removal of Cotton Lint : From front & rear
9. Floor Space Required (Including electric motor) Jumbo Model : 2360 x 1720 x 1170 mm
10. Minimum Distance between Machines : 600 mm
11. Rotation of Driving pulley : Any direction
12. Weight of the Machine Jumbo Model : 915 Kgs. (Approx.)

Specifications of Double Roller Ginning Machine:
* All gear, connecting rod, head pin, beater arm, swing levers etc. are made of high modularity ductile iron
* All rotating parts are provided with bearing to reduce friction for optimum efficiency
* Connecting housing is provided with heavy duty self aligning roller bearing.
