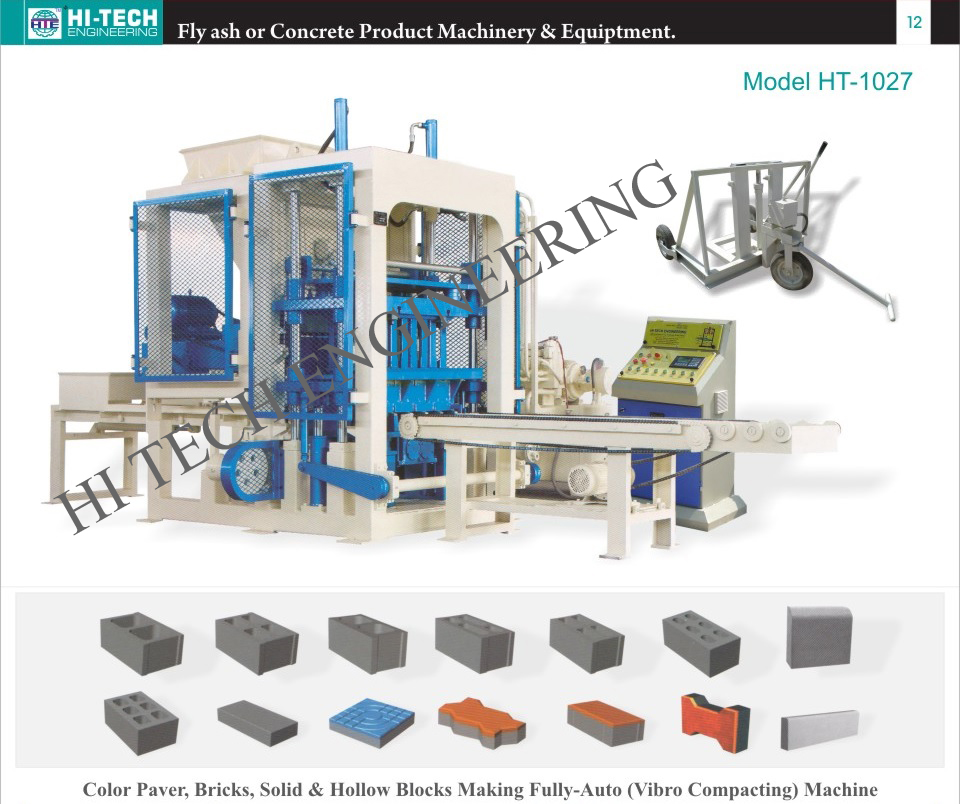

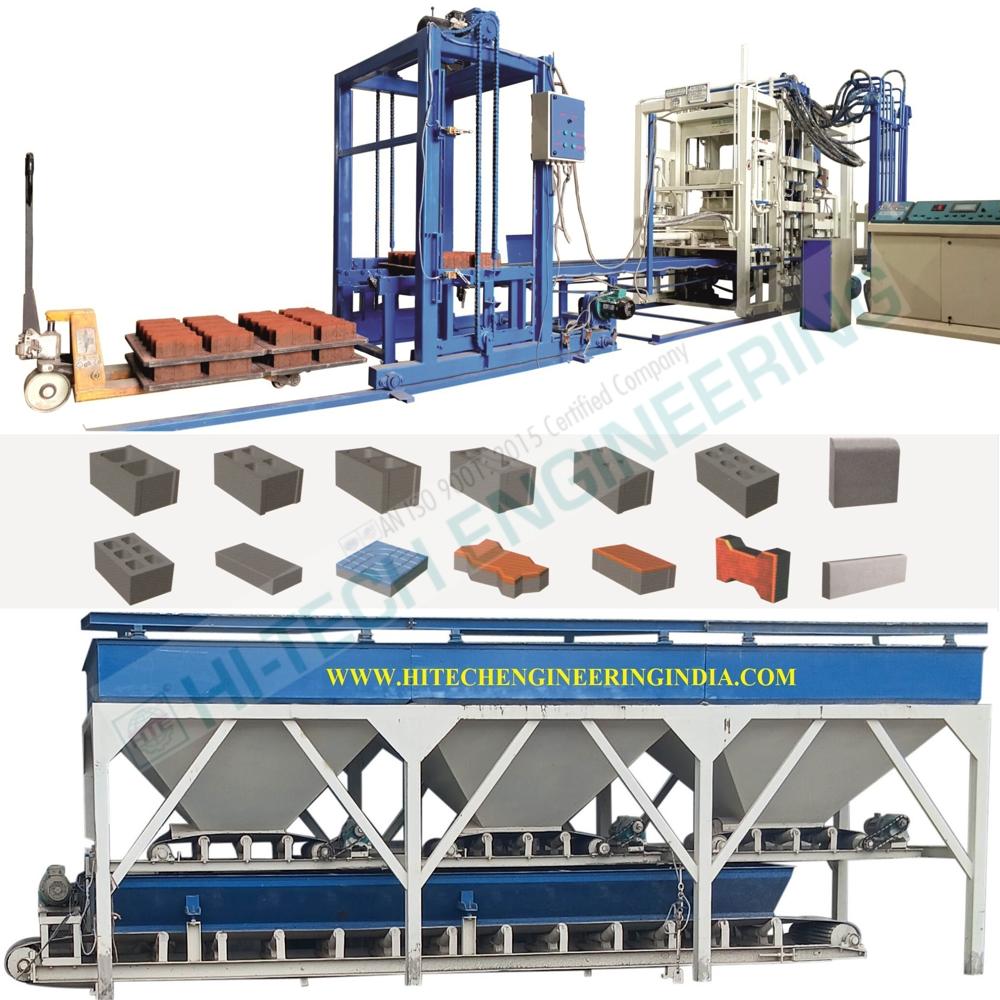

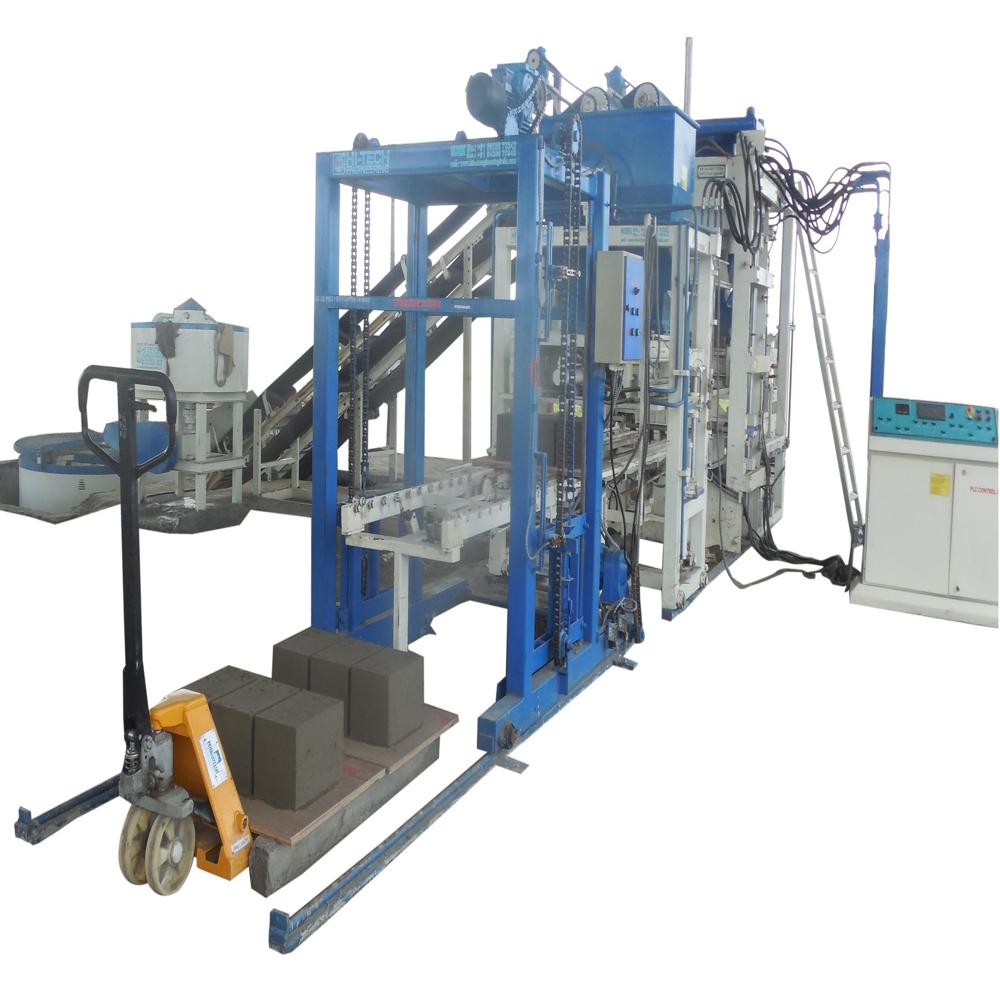

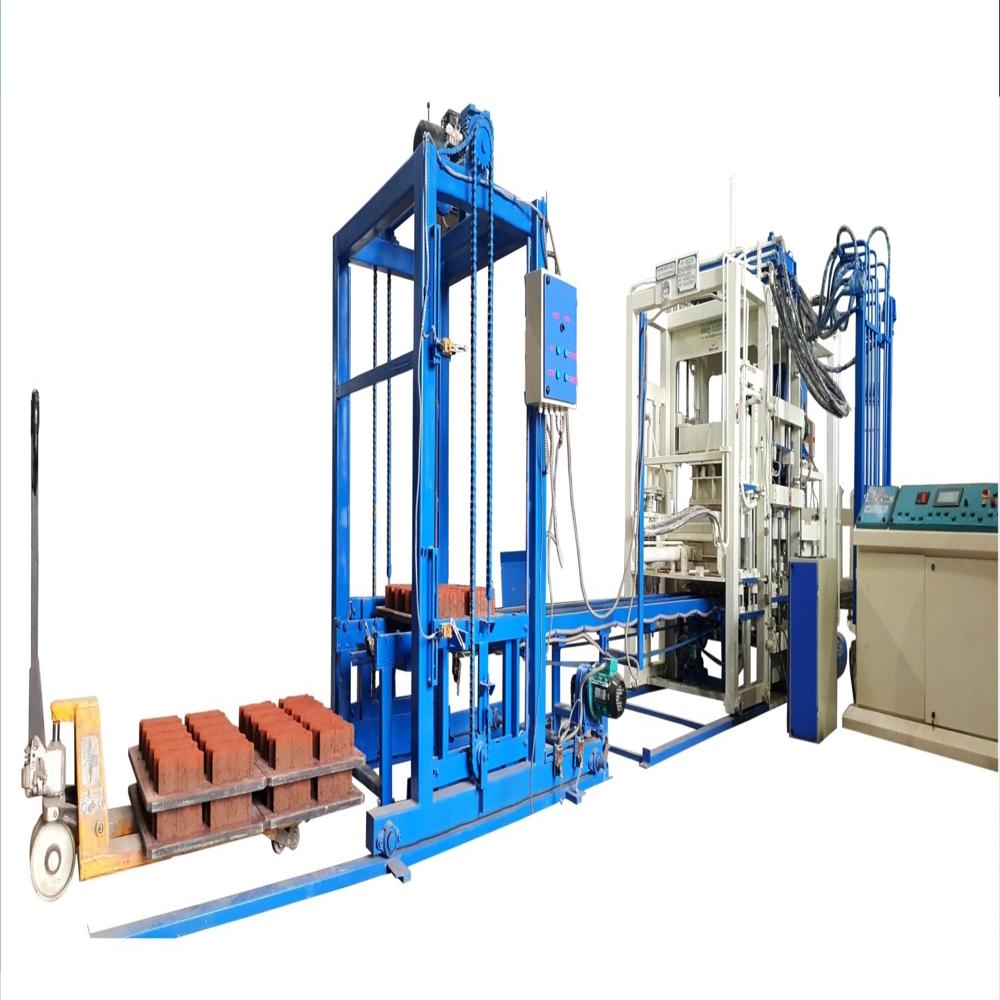

Fully Automatic Vibro Press Block Making Machine - Capacity: 40 Pcs/min
Price: 4697226.00 INR / Unit
(3980700.00 INR + 18% GST)
Get Latest Price
MRP:
4697226.00 INR / Unit
Weight :
12.00 Tonne
1 Pack Contains :
1
Minimum Pack Size :
1
In Stock
Product Specifications
| Color | yes |
| Product Type | Color Paver, Brick, Concrete Solid Hollow Block Making Machine |
| General Use | Concrete Block making Machine |
| Material | Concrete |
| Processing | Brick Production Line |
| Power | 440 Watt (w) |
| Computerized | Yes |
| Capacity | 40 Pcs/min |
| Automatic | Yes |
| Weight (kg) | 12 Metric Ton |
| PLC Control | Yes |
| Method | Other |
| Brick Raw Material | Cement |
| Vibration Type | Mold Vibration |
| Vibration Frequency | 50 Hertz (HZ) |
| Type | Solid Brick Making Machine |
| Maximum Pressure | 1500 PSI |
| Machine Power | 61 Horsepower (HP) |
| Voltage | 440 Watt (w) |
| Dimension (L*W*H) | 225x112.5x80 Millimeter (mm) |
| Pallet Size | 34Inch x 24Inch x 24mm |
| Minimum Height | 150 Millimeter (mm) |
| Maximum Height | 9 Foot (ft) |
| Number of Bricks | 12 |
| Feature | Fire Resistant, Heat Insulation, High Durability |
| Warranty | 01 year |
| Payment Terms | Cash in Advance (CID) |
| Supply Ability | 1 Per Month |
| Delivery Time | 60 Days |
| Sample Available | No |
| Packaging Details | Loose |
| Main Export Market(s) | Asia, Africa |
| Main Domestic Market | All India |
| Certifications | AN ISO 9001:2015 CERTIFIED COMPANY |
| Brand Name | Build Con |
| Product Unit | 1 Unit/Units |
| Unit Type | Unit/Units |
| Pkg Box Breadth | 84.00 inches |
| Mop | 1 |
| Moq | 1 |
| Shipping Type | actual |
| Stock Quantity | 2 |
| GSTIN | 18% |
| Currency | INR |
| Packsize | 1 |
| Price Type | fixed |
| MRP | 4697226.00 INR |
| Pkg Box Length | 384.00 inches |
| Weight | 12.00 Tonne |
| Pkg Box Height | 96.00 inches |
| Returnable | No |
| Color | yes |
| Price | 3980700.00 INR (Approx.) |
| Minimum Ordered Packs | 1 |
| Minimum Order Quantity | 1 |
Product Overview
Key Features
2.Oil Tank Capacity: 475 Liter, Standard Company, Grade 68 No. Hydraulic Oil.
3.Production Capacity per Shift 8 Hour: Color Paver- 11000 to 12000, Solid & Hollow Block- 5000 to 5500, Bricks- 17000 to 18000.
4.Paver Block per Stock: 10 Block or depend on design (Design as per requirement).
5.Solid & Hollow Block per Stock: 3 or 4 Block depend on size (Size As per requirement).
6.Bricks per Stock: 12 Bricks, 230 X 110 X 75mm or as per requirement.
7.Mould Vibro System: 15 HP.
8.Pallet Forward System: 1 HP.
9.System Vibro, Oil Chiller, Pallet Auto Cut, Varam System, Magnetic System, Special Oil Filter, Feeding & Mould Gap Adjustable Plate, etc
10.Auto Color Feeding: Auto Double Feeder Attachment for Top Layer, Color Paver.
11.Pan Mixer: 2 Nos. (6 Ft. 600 Kg Capacity, Heavy Duty Roller & Blade) Powerful Worm Reduction Gear Box Transmission Unit.
12.Conveyor: 2Nos, Ft 30 X Width 24 Inch X Thickness 8mm & Ft 18 X Width 18 Inch X Thickness 8mm Belt For Color, Dunlop or MRF.
13.Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).
14.Color Pan Mixer: 1 Nos. 3 Ft. 200 Kg Capacity Heavy Duty.
15.Auto PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.
16.Note: Specifications are subject to change for improvement, Engineering drawing for civil work and shed for the machine installation.
Company Details
Established in the year 1983, at Morbi, Gujarat, India), we Hi-Tech Engineering, are a well-known manufacturer of a superior quality range of Fly Ash Brick Making Machine, Paver Block Making Machine, Block Vibro Press Machine, Pan Mixer Machine, Steel Mould, etc. Empowered with a well-equipped infrastructural unit, we are capable of supplying the most durable product range of the uppermost quality. Our offered range is developed by a team of skilled and knowledgeable personnel who leave no stone unturned in order to offer flawless range of products. Our products are reckoned for valuable features like sturdy construction, longer service life, high tensile strength, excellent efficacy and optimum performance. Customers can avail the offered machines from us at highly effective prices.
Business Type
Manufacturer, Supplier
Employee Count
15
Establishment
1983
Working Days
Thursday To Tuesday
GST NO
24AAHFH8318P1ZW
Payment Mode
Cheque
Certification
ISO 9001 : 2015
