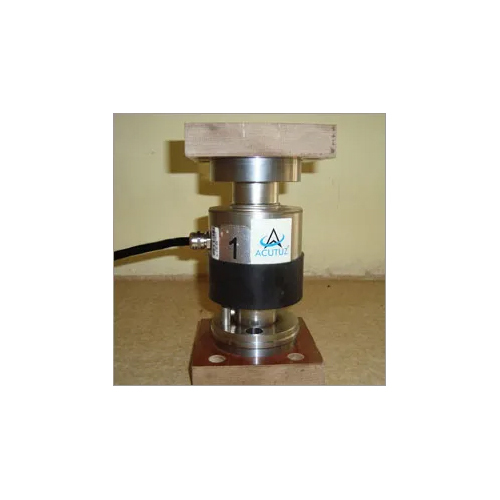

Digital Load Cell - Stainless Steel 17-4 Ph, Ip68 Environmental Protection | Built-in Microcontroller, Oiml And Ntep Approved, Easy Communication Rs485

Through our relentless effort to achieve excellence in the field of designing and manufacturing high quality weight management products, we have gained a prominent place in the market as a reliable manufacturer and exporter of Digital Load Cell. It is an RC3 rocker column based and is incorporated with microprocessor system that improves system accuracy and system handling. The digital weighbridge output ascertains the users join each load cell independently with others. The Digital Load Cell is offered at highly competitive prices to our worldwide customers.

Features:

• Stainless steel construction 17-4 PH (1.4548)
• Digital load cell with built-in micro controller and A/D conversion
• Environmental protection IP68 with complete hermetic sealing self restoring design
• Easy communication (RS485) and fast system setup
• Accuracy class according to OIML R60
• Improved handling of corner adjustment, system calibration fault finding and load cell replacement
• Cable length: 18m

Approvals

• OIML approval
• NTEP approval to 6000 intervals, Class III (for 7.5 to 75 t)
• ATEX hazardous area approval for Zone0, 1, 2, 20, 21 and 22
• FM hazardous area approval
• Constructed with stainless steel 17-4 PH (1.4548)
