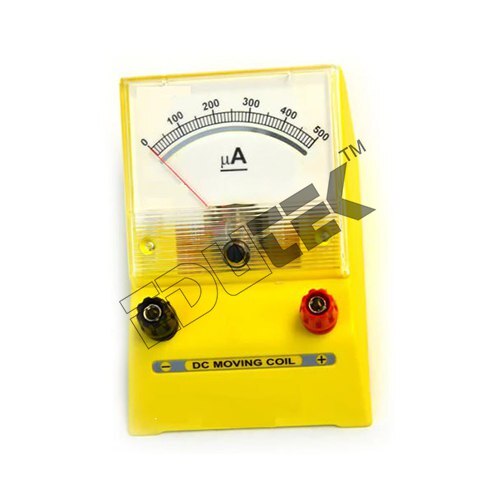

Dc Micro Ammeter 0-100a - Dc Measurement Range, Precision Instrument For Engineering Electronics Applications - Ideal For Analysis And Testing

Price:

Get Latest Price

Minimum Order Quantity :

1 Piece

Brand Name :

Edutek

In Stock

Response Time	Instantaneous, less than 1 second
Features	High sensitivity, precise measurement, durable housing, anti-glare display, easy mounting
Interface	Screw Terminals
Input	Direct DC current up to 100 Ampere (A)
Sensors Specification	Moving coil type sensor
Usage	ENGINEERING ELECTRONICS INSTRUMENTS
Operating Temperature	0AdegC to 50AdegC
Display Type	Other, Analog Dial Type
Components	Pointer Needle, Scale, Moving Coil Mechanism, Front Glass Cover, Terminals
Output	Analog visual indication on meter scale
IP Rating	IP20
Power Source	Through current to be measured
Power Supply	Self-powered through measured circuit
Resolution	High Resolution Analog Scale (Subdivided Markings)
Product Type	DC MICRO AMMETER 0-100A
Application	ENGINEERING ELECTRONICS INSTRUMENTS
Rated Voltage	500V DC Max
Supply Voltage	N/A (powered by measured current)
Size	96 x 96 mm mounting size
Dimension (LWH)	96mm x 96mm x 50mm (Approx.)
Function	Measures direct current (DC) in microampere range up to 100A
Color	Black and White with clear marking
Weight	Approx. 280 grams
Capacity	0-100A DC
Thickness	Approx. 50 mm
Current Rating	0-100A DC
Frequency	DC only
Packaging Details	Carton Box, Export Quality also Available
Main Export Market(s)	Asia, Middle East, Africa
Main Domestic Market	All India
Certifications	ISO 9001, 14001, CE
