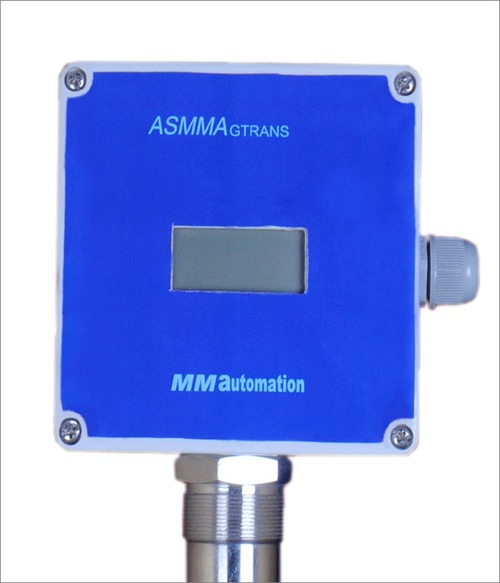

Combustible Gas Sensor Transmitters Net Weight: 1.2 Kilograms (Kg)

We are venerated manufacturer, exporter and supplier of a truly international range of Combustible Gas Sensor Transmitters in Vasai, Maharashtra, India. The ATS-109TD Sensor/Transmitter operates on 24 VDC power and features LED alarm indicators, 4-20 mA output and optional alarm relay board. This sensor/transmitter can be connected to various applied controllers or computer-based instrumentation, such as PLC or similar instrumentation. Electrochemical Sensor/Transmitter for H2, O2, CO, H2S and other Toxic Gases. The ATS-109TD Series Sensor/Transmitters utilize electrochemical type cells to detect the target gas.
These cells consist of electrodes, electrolyte and an air/liquid separation barrier.
Gas molecules enter the cell and, as a result of an oxidation/reduction reaction, generate an electrical current proportional to the gas concentration

Specifications:

Principle: Electrochemical,Solid State Semiconductor and Catalytic
Range: %V/V, % LEL, PPM, PPB
Resolution: 0.1 Unit or 1 Unit (Application based)
Sampling Method: Diffusion
Display: Alphanumeric LED
Alarm; Relay Contact NO NC
Analog Output: 4-20mA
Digital Output : RS 232, RS 485 and Modbus Communication Protocol
Power Source: 24V DC or 230VAC
Accuracy: /2%
Response Time: <5 Second
Sensor Life: 2-3 Years


Environmental:

Temperature:-15degree Celsius Humidity :< 85%RH Atmosphere Pressure: 86- 106Kpa
Dimension in mm: 120 (W) X 125(H) X 1120(D)
Weight: 1.2 KG
Warranty: One Year
