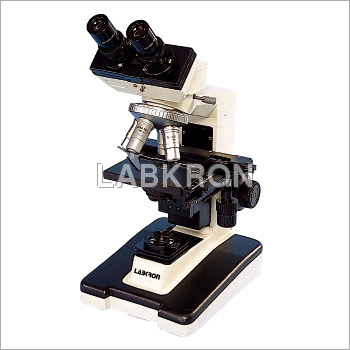

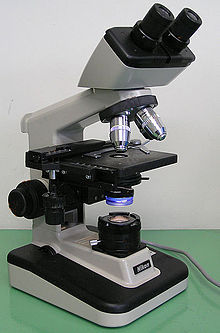

Binocular Microscope Coaxial

A rigid and heavy stand, observation Binocular Head inclined at 45A and rotatable through 360A assembled from high quality PRISMS to ensure highly accurate collimation for stain free observation. Adjustable interpupillary and dioptric distance.
Focusing System : Our co-axial focusing system is based on four stage gear reduction system traveling on ball bearing guidways which provides the highest degree of sensitivity, free for any back lash in operating the fine focussing of optical system.
Operating knobs are of extra large size which provides a soft & sophisticated touch of the microscope.
Ball Bearing quadruple nose piece with click stop.
Fixed stage size 140 x 125 mm with Precision Co-axial Mechanical stage for X and Y moment of slide up to 50 x 75 mm.
Optics : Only best quality objectives and eye piece are supplied to provide finest performance. These are PARAFOCALISED and PRE-CENTERED with each Microscope after the most Stringent tests.
Illumination : by 6V 20W Halogen lamp operated through built in solid state transformer with electronic regulator. Also provide with Plano concave Reflecting Mirror attachment for day -light use.
Condenser : Abbe N.A 1.25 with iris diaphragm Moving up and down by rack and pinion.
Din Objectives : 4/5X, 10X, 40/45X, (SL) and 100X (SL) O.I all imported.
Eye-Pieces : 10X W.F and H5X or H15X (Any Two Pairs)
