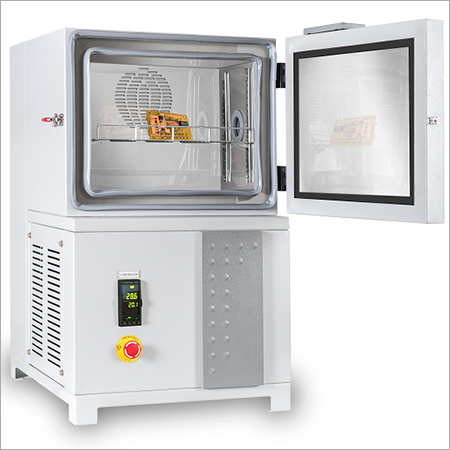

Benchtop Test Chamber Table Top Chamber

Benchtop Test Chamber Table Top Chamber

As one of the leading manufacturers of simulation systems worldwide, CME’s latest offering, the new NC-ZSB Series chambers are designed to meet all the renowned international test standards. The features like smaller footprint, lesser noise, and wide temperature/humidity range are only added value to its superior performance which delivers at any severe testing conditions.

i) Chamber Design

a) Test Space

AISI-304 grade polished stainless steel.

Adjustable shelves.

High uniform load bearing capacity.

b) External Body

Galvanized steel with epoxy based powder coating (RAL-7035)

c) Entry Ports

1no. non-conducting silicone entry port 50 mm with a non-conducting silicone plug l. h. side

ii) Chamber Operation

a) Cooling Unit

Inner grooved high efficiency evaporator unit used with fins for heat exchange

b) Controller

Eurotherm 2408 Programmable controller

Refrigeration system

Cascade system

On Demand cooling

Based on the time and the cooling demand, in different modes such as soak and ramp up, the compressor automatically turns off for a significant power saving.

Condensing Unit

In-built are cooled condenser used for heat rejection with low noise, fan cooled finned condenser.

Technical Specifications
