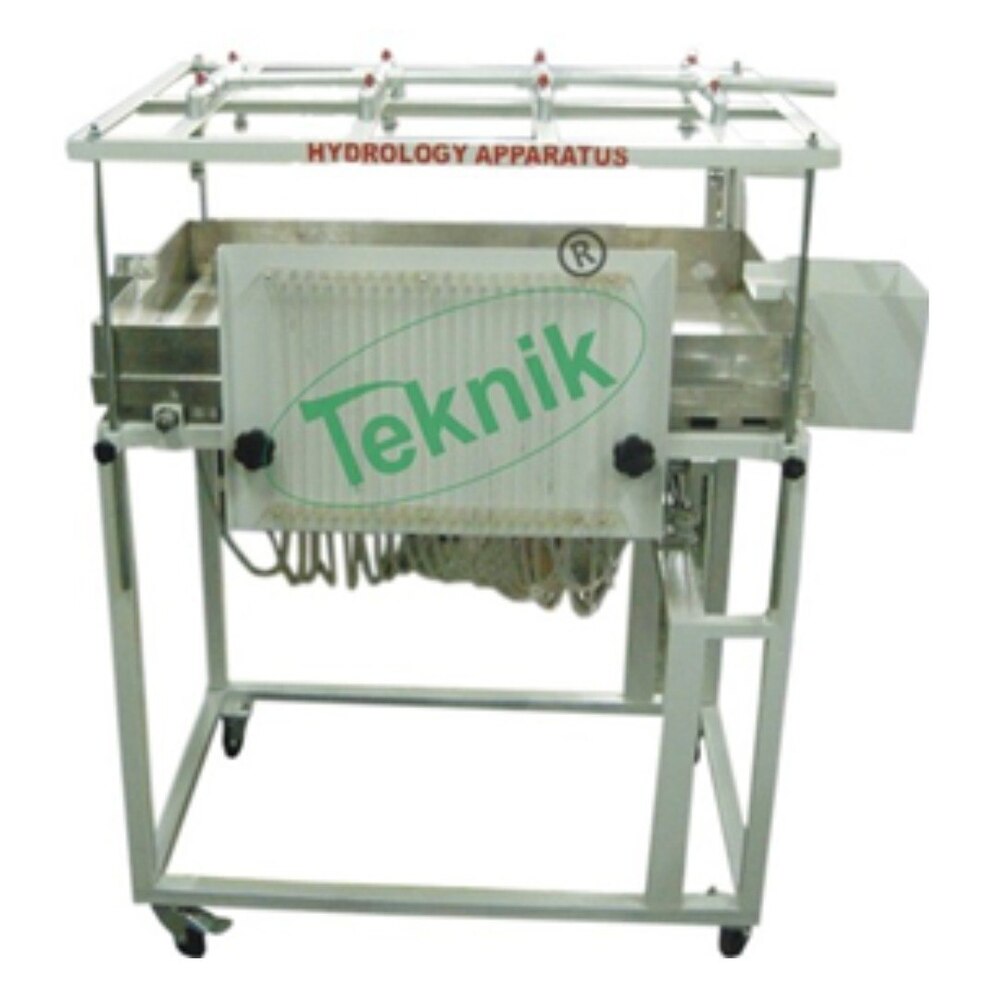

Basic Hydrology System - Application: Hydraulic Fluid Mechanic Lab Equipments

Technical Data
Tank: Stainless steel 100 cm wide x 200 cm long x 19 cm high. .
Inclination: 0-3%.
End compartments: 2 ea.
Wells: 2 ea.
Spray nozzles: 8 nozzles with separate shutoff valves. .
Flow measurement
Rain water: Variable area flow meter.
Run off: Calibrated weir. .
Manometer: 1 ea.
Upper walls: Clear acrylic. .
Accessories: - Rectangular ring, circular ring, confined equifer, cylindrical pier. .
Power supply: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.

Typical Tests
Investigation of rainfall/runoff relationships for dry, saturated and impermeable catchments of various slopes for surface runoff. .
Effect of interflow on outflow hydrograph.
Simulation of multiple and moving storms.
Cone of depression for single well and interaction of cones of depression for two adjacent wells.
De-watering of excavation sites by use of wells.
Flow from a well in a confined aquifer.
Demonstration of watersheds for a simulated island with rainfall and well flows.
Sediment transport and meanders in simulated rivers.
A metal frame supports the tank and houses a storage tank.
Water is drawn from the storage tank by a pump and separately supplied to the overhead nozzles and/or the two end compartments via a flow meter and pipings with valve control.
Run-off from the catchment is measured by a calibrated rectangular weir or returns directly to the storage tank.
