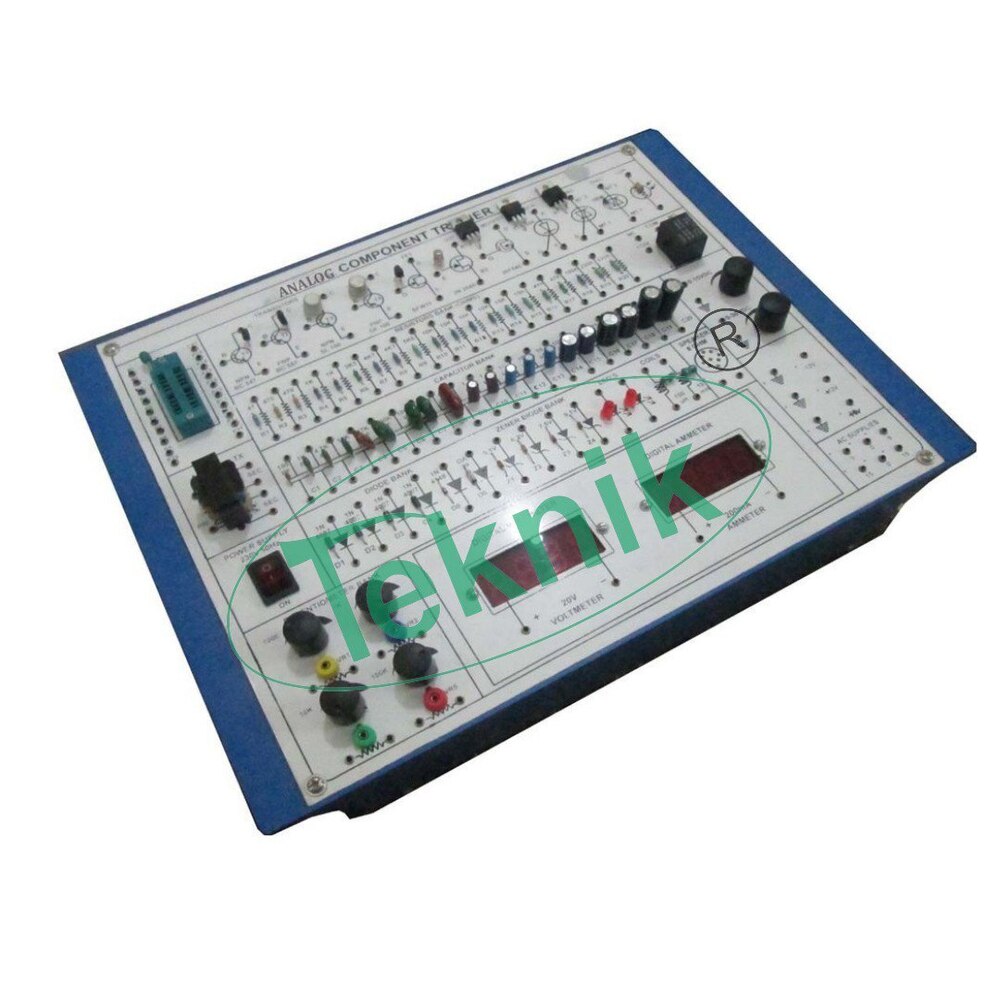

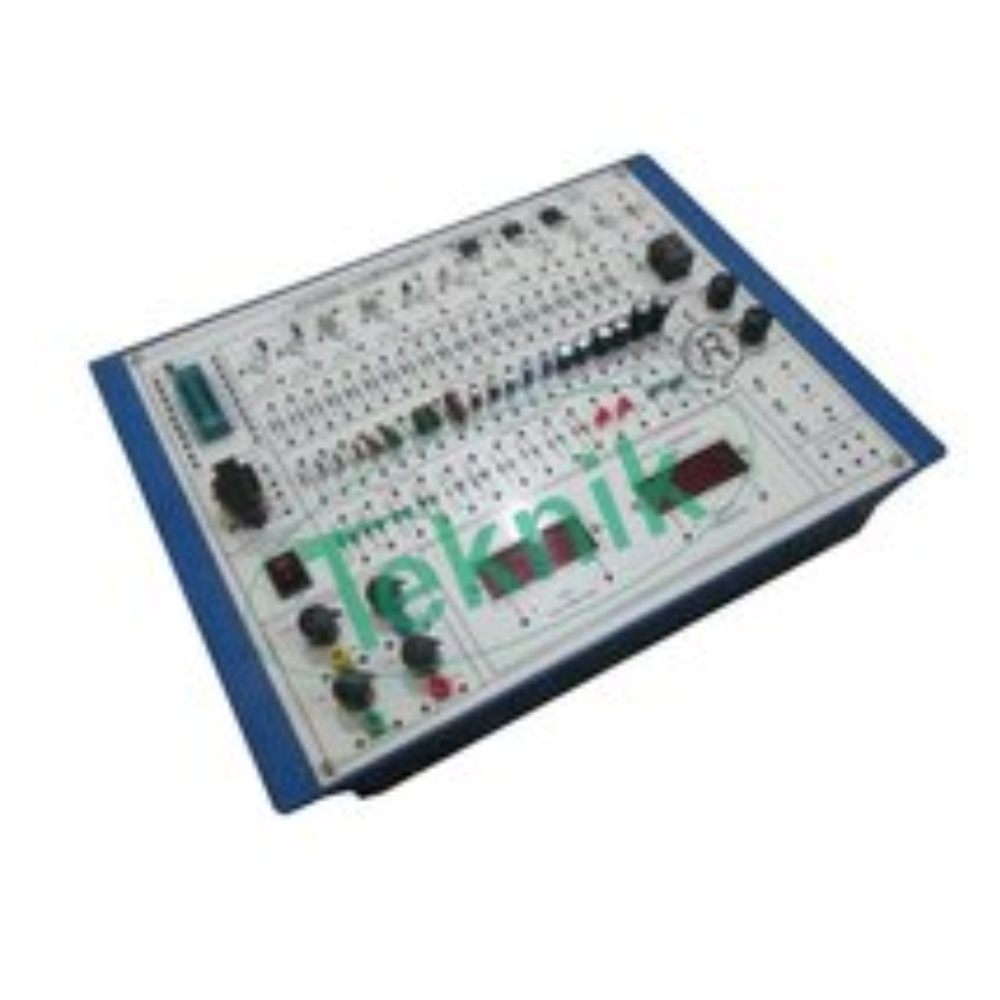

Analog Component Trainer - 0-50v Power Supply, 20-pin Veroboard, Digital Meters, Rectifier Diodes, Variable Resistors, Zener & Capacitors | Versatile Analog & Discrete Component Training
Price:
Get Latest Price
Minimum Order Quantity :
1 Piece
Brand Name :
Teknik
In Stock
Product Specifications
| Measuring Range | Depends on connected experiment |
| Automation Grade | Manual |
| Usage | ANALOG / DESCRETE COMPONENT TRAINER |
| Humidity | Up to 85% RH (non-condensing) |
| Specimen Size | Standard electronic components |
| Temperature | 0AdegC to 50AdegC |
| Product Type | ANALOG / DESCRETE COMPONENT TRAINER |
| Interface Type | On-board sockets, terminals |
| Equipment Type | Analog / Discrete Component Trainer |
| Operating Voltage | 230V AC, 50 Hz |
| Frequency | 50 Hz |
| Accuracy | As per connected meters/measurement devices |
| Application | ANALOG / DESCRETE COMPONENT TRAINER |
| Mounting Type | Bench-top |
| Resolution | As per connected meters/measurement devices |
| Features | Includes test points, breadboard area, fitted passive and active components |
| Power Supply | 230V A+-10% AC, 50 Hz |
| Number of Specimens | Multiple components mountable |
| Capacity | Supports various discrete analog components |
| Machine Weight | Approx. 4-5 kg |
| Test Speed | Manual operation |
| Control Mode | Manual |
| Payment Terms | Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
Product Overview
Key Features
Trainer comprises Power supplies inside the trainer
Power supplies on boards 0-50 V, 250 mA and 0-30 V, 250 mA Variable
15 V/150 mA and 5 V/150 mA Fixed Supplies provided
4 Nos of Variable resistor provided on the board
One 20 Pin Veroboard on mounted on the board
Ac power supply 15-0-15 V for rectifier applications
2 Nos. of digital meters provided on board
Various components on the trainer set
3 Pairs of connected 2 mm sockets
4 Rectifier diodes
1 OA79 germanium diode
3 different values of Zener
N different values resistances
N different values capacitors
