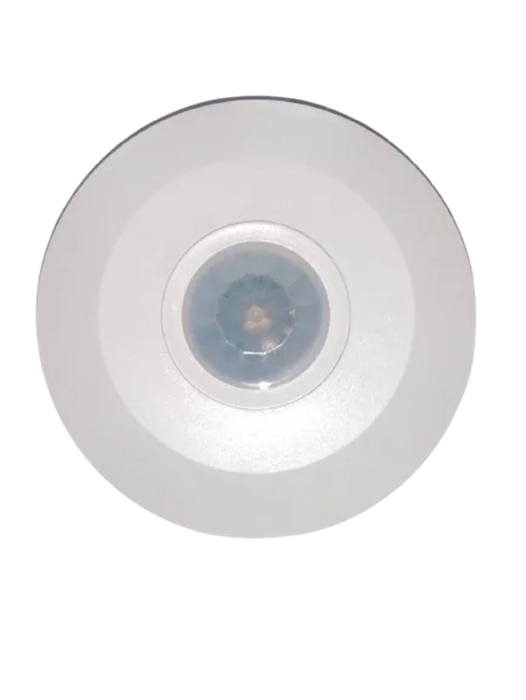

360 Deg. Ceiling Mount Pir Sensor

We feel proud to introduce ourselves as a well reputed Manufacturer, Distributor and Supplier of 360 deg. Ceiling Mount PIR Sensor in New Delhi, Delhi, India.
PIR Motion Sensor Switch Ceiling Mounted

Model No: 1LXCM

1LEAP PIR Motion Sensor
The Product is new Energy Saving Device, it adopts good sensitivity detector, integrated ckt. It gathers automatism, convenience, Safety,Saving energy physical functions. It works by receiving motion Infrared rays. And automatically ON by presetting a timer it will OFF.

Quality control standards:
Operating Volt: AC 220-250V 50Hz-60Hz.
Load power: Up to 300/1200W Max
Ambient Light: 3-2000 (Adjustable)
Load type: Incandescent lamp, LED light, CFL, fans, etc
Detecting distance: 0~7M
Detecting Angle: 360 Degree.
Installation Height: 2.2-4 Mtr
Motion Detection Speed: 0.6~1m/s
Power Consumption : 0.1W (static) 0.4(Work)
Working Humidity: less than 93%RH
Delay: 10 Seconds -7 Minutes (Adjustable)

PRODUCT INSTALLATION:
1.Keep Sensor unit 1.6 Mtr higher from the ground level.
2. The light, such as incandescent lamp which emits high heat should be kept away from the switch, otherwise it might be turn on/off voluntarily.
3. On being fixed to the wire first time, the switcha initialization will take 1-2 minutes. Ita s natural for the switch to turn on/off voluntarily.
4. When you install the switch on daytime, the Default State of the switch will make the light off.Keep the detector of the switch from illumination, then the light will turn ON.
