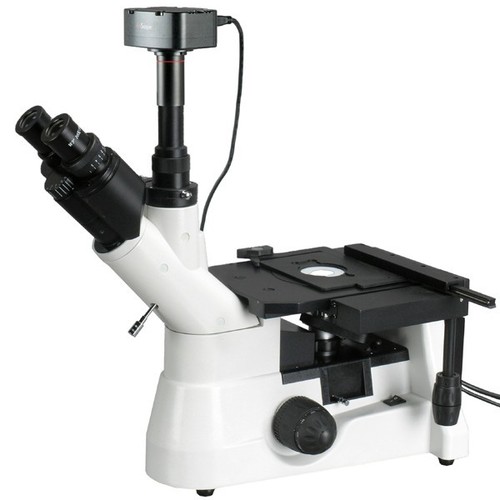

मैटलर्जिकल माइक्रोस्कोप
प्राइस: 19200.00 INR
(19200.00 INR + 0% GST)
नवीनतम कीमत पता करें
1 Pack Contains :
1
Minimum Pack Size :
1
स्टॉक में
विस्तृत जानकारी
| थ्योरी | Upright Metallurgical Microscope for reflected and transmitted light observation in material sciences., Upright Metallurgical Microscope for reflected and transmitted light observation in material sciences. |
| ड्राट्यूब | Binocular/Trinocular head, 360° rotatable, inclined at 45°, Binocular/Trinocular head, 360° rotatable, inclined at 45° |
| सेन्सर | Optional camera adapter with CMOS sensor (when fitted with digital camera) |
| रेज़ोल्यूशन | Up to 5.0 MP (digital camera dependent) |
| अंतरफलक | USB 2.0/3.0 (digital camera accessory) |
| फोकल दूरी | Infinity-corrected optical system |
| इज़ाफ़ा | 50x to 1000x (using standard objectives and eyepieces) |
| फोकस रेंज | Coarse and fine focusing, vertical movement of stage ~30mm |
| ऐपिस | WF10x/22mm with diopter adjustment |
| ऐपिस ट्यूब | Trinocular or binocular, anti-fungus treated |
| रोशनी | 6V/20W halogen lamp, with adjustable intensity and field diaphragm; epi-illumination for reflected light |
| मोटे समायोजन की सीमा | 30mm or more |
| फाइन एडजस्टमेंट रेंज | 0.002mm precision |
| काम करने का चरण | Double layer mechanical stage, size 140x140mm, movement range 75x50mm |
| इमेज फ़ॉर्मेट | JPG, BMP, TIFF (when equipped with digital camera) |
| हेड देखें | Trinocular or Binocular, inclined, 360° rotatable |
| इंटरपुपिलरी दूरी | 55-75mm adjustable |
| ऑब्जेक्टिव अक्रोमेटिक | 4x, 10x, 40x, 100x (oil); infinity plan achromatic |
| कंडेंसर | NA 1.25 Abbe condenser (transmitted), with iris diaphragm |
| प्रकाश स्त्रोत | Halogen lamp 6V/20W (reflected/transmitted illumination) |
| आयाम | Approx. 420mm x 220mm x 480mm (L x W x H) |
| फ़्रेम रेट | Up to 60 fps (when digital camera installed) |
| स्टिल इमेज कैप्चर रिज़ॉल्यूशन | Up to 2560x1920 pixels (with digital adapter) |
| वीडियो कैप्चर रिज़ॉल्यूशन | 1080p Full HD (with digital adapter) |
| फोकस सिस्टम | Coaxial coarse & fine focus system with tension adjustment |
| स्पेयर पार्ट्स | Eyepieces, objectives, fuse, halogen lamp, dust cover |
| विशेषताएँ | Reflected and transmitted light, ergonomic design, anti-fungus optics, modular camera upgradeable |
