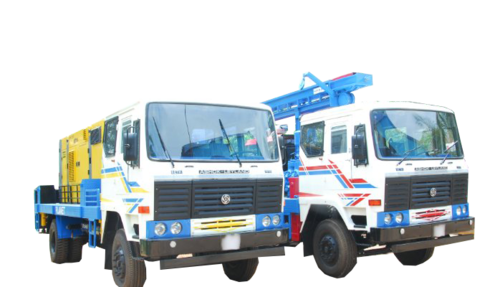

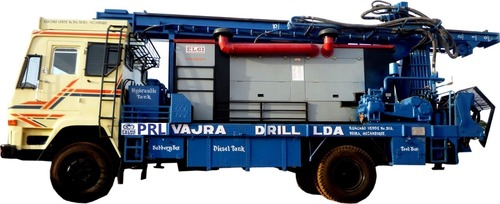

The PDTHR drill rig is ideal for water well drilling application in rock formation. Thanks to its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class. The PDTHR-200 rigs flexibility means it can be mounted on single truck version, two truck versions and on local truck matching the rig to the terrain it will be used. Can be used for both DTH and mud rotary drilling
Optional: Skid mounting
Key features:
Proven technology ensures easy maintenance and more productive. The rig can be customize as per customer requirement All the actuators are operated by proportional control valves
Key specification:
Drill rod handling- 10 feet (3.0 meter) - 15 feet (4.5 meter)
Drilling depth- 650 feet (200 meters)
Drilling diameter- 4.5 inch (114 mm) - 8 inch (203 mm)
Pull up force- 5,000 kgf
Drill head torque- 255 kg.m
Air compressor- 600 cfm/200 psi
Mud pump- 300 lpm - 500 lpm
Carrier- Truck(Optional: Skid)
