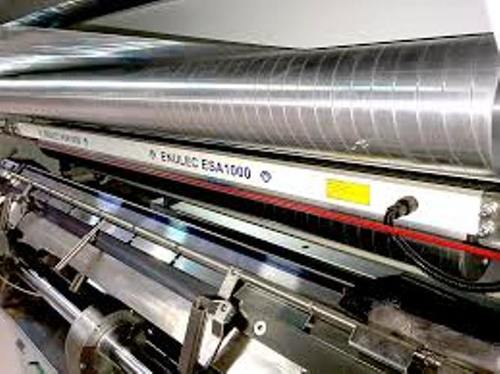

Coating Machine - Max. Web Width 800-1500mm, Dry Lamination System With Gravure Coating

We are esteemed manufacturer, supplier and exporter of an advanced range of Coating Machines in Ahmedabad, Gujarat, India. TECHNICAL DATA FOR COATING AND DRY LAMINATION MACHINE: i Max. web Width : 800MM TO 1500 mm. i Max. Unwind Dia. : 800MM T0 1000 mm. i Max. Rewind Dia. : UP TO 1200 mm. Max. i Type of Lamination : Dry i Max. Machine Speed : 0 to 100/150 M.P.M i Note : The actual production speed will however depend on all lamination condition, such as type weight and quality of material adhesives and solvents atmospheric condition operator skillfulness etc. i Ideal roller : Aluminum 85 mm O.D width inside bearing with 25 mm MS shaft. i Tunnel Roll : 75mm with 20mm shaft i HEATING ARRENGMENT : Heating arrangement through hot air generator 50 um to 1 lakh or 1hp blower with 12hp heater (for each chamber) i Heat Controller : tharmoset or temp controller i Material to be laminated : Paper Polyester, BOPP Allum, Foil LDPE & other allied material i Frame Structure : CI plate up to 20/40 mm and Channel 4-2 i Dryer : glass wool panel from MS sheet. i Coating system : gravure type coating with CI plate up to 20 mm and Wit
