Is an OTG cable different from a USB cable?
In late 2001, the USB On-The-Go (OTG) protocol was introduced, allowing USB devices like tablets and smartphones to serve as hosts for additional USB peripherals like flash drives, digital cameras, controllers, and keyboards. By employing OTG cable, such gadgets can transition between playing the part of host and peripheral as needed. While connected to a computer, a cell device can act as a USB Mass Storage Device and act as the host device when reading from removable media.
When two USB devices are connected, and one of those devices is a USB OTG device, the two devices are able to communicate with one another because USB OTG introduces the concept of a device performing both the Host and Peripheral functions simultaneously. The term "Host" refers to the component that controls the connection, while "Peripheral" refers to the other component.
OTG A-devices and OTG B-devices are the two roles that are defined for devices by USB OTG. These roles dictate which side of the link supplies power and which side first acts as the host. The Host Negotiation Protocol allows for the swapping of the host mode as well as the peripheral mode at a later time.
The Master/Slave architecture is utilized by standard USB. This means that a host device serves as the Central server for the whole bus, and a USB device acts as a Peripheral. When using conventional USB, devices must take on either the role of a host or a peripheral in order to work properly. Computers are typically configured to act as hosts, while printers take on the role of a peripheral. When US B On-The-Go was not yet available, peripheral capabilities were frequently added to mobile devices so that data could be easily transferred to and from computers. Due to the fact that these phones also fulfilled the job of a peripheral, it was difficult to connect them to printers. The USB On-the-Go standard solves this problem head-on.
When a device is connected to a USB bus, the host device will manage the establishment of communications with the connected device as well as the provisioning of services. This makes it possible for the devices to be much simpler in comparison to the host. For instance, a mouse has very little logic and depends on the host to do practically all of the work. The host is in charge of all of the data exchanges that take place on the bus; the devices can only send out signals to indicate that they need attention. The host will first read the data from one device, such as a phone, and then write it to the second device in order to complete the process of transferring data between two devices, such as from a phone to a printer.

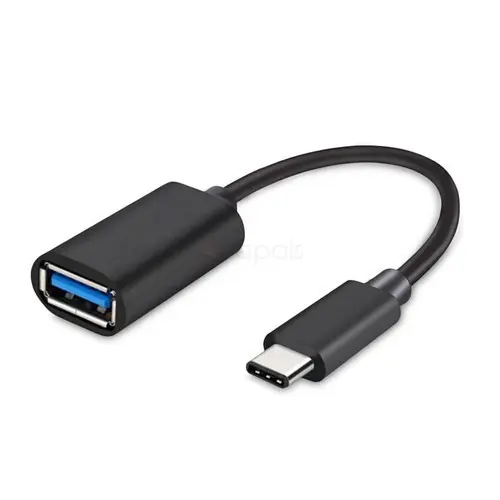

Female Otg Adapter Cable
Due to our extensive proficiency in this field, we operate as an Importer, Manufacturer, Distributor, and Supplier of Female OTG Adapter Cable, located in Noida, Uttar Pradesh, India. See more detail .
Because USB OTG acknowledges that a device may serve as both a host and a peripheral, the language has gradually shifted as a result of this recognition. A device that supports OTG can either serve as a host when it takes on the role of a link master, or it can function as a link peripheral. Which end of the wire a device is linked to ultimately determines whether it acts as a host or a peripheral device. The device that is attached to the end of the cable labeled "A," also known as the "A-device," serves as the default host. The device can be connected to the cable's other end labeled "B," also known as the "B-device," which serves as the default peripheral.
After the initial starting process, the configuration of the bus is carried out in the same manner as it does in the usual USB standard; specifically, the A-device is responsible for configuring the B-device and controlling all connections. On the other hand, if the same A-device is connected to another USB system or if a specialized host is available, it is capable of switching roles and becoming a slave.
The use of a USB hub is not prohibited by the USB OTG standard; nevertheless, the host-peripheral role switching that is described in the standard is only applicable in the situation of a one-to-one connection, in which two OTG devices are physically linked. Because one device will operate as a host and the other will act as a peripheral until the two are unplugged from the hub, role switching is not possible when using a normal hub.
Also Read: Network & Communication Cables That Power Your Internet
Benefits of OTG Cable
Since the beginning of personal computers, the Universal Serial Bus, sometimes known as USB, has been an essential component. However, USBs from the past had certain restrictions that made it necessary for consumers to move away from PDAs, cell phones, and digital cameras and toward personal computers. Because the typical USB didn't support all devices, it was difficult to connect electronic components to one another. These limits, however, have been addressed in a new version of the USB protocol known as the USB OTG, which allows for improved interconnectivity. With On-The-Go, it is possible to connect two devices without using a computer as the intermediary. Ericsson, Qualcomm, Nokia, Cypress, Microsoft, as well as Philips are just some of the major companies that have shown significant support for the On-The-Go standard over the course of the previous several months. In addition, the relevance of the OTG is growing as a result of the fact that manufacturers are regularly upgrading their OEM platforms with new versions. Let's take a more in-depth look at the benefits that the newly developed technology provides.
Type-C OTG cable is an updated version of the USB 2.0 standard that may be found in many modern electronic gadgets, including our desktop PCs and portable laptops. With USB On-The-Go, no host device like a computer is required to establish a connection between two devices. In the past, it was required to first upload photos from a digital camera to a laptop before they could be transferred to a mobile device like a smartphone or tablet. Once that was done, the photos could be transferred to the mobile device. However, if your camera and phone are both On-The-Go compatible, you may begin the transfer as soon as you've linked them. Because the PC is losing its central role in technology, an OTF is becoming more and more useful.
It is not just a matter of ensuring that the two devices can communicate with one another. Additionally, USB OTG enables you to control everything with a single device, which could be anything you want it to be. You may now utilize a dozen different peripheral devices, such as keyboards, controllers, musical instruments, and even gaming pads if you enable your smartphone to act as the host. When utilizing USB On-The-Go, you may connect an unlimited number of pieces of hardware to a computer or other electronic device. Your electronic devices, such as your smartphone in this instance, would benefit from the additional power that this provides.
Quality of OTG Cable
There are many different OTG cable manufacturers available on the market nowadays as a result of their popularity among consumers. The difference in the quality of a USB cable between version 3.1 and earlier models is instantly noticeable when it comes to charging rates as well as the transmission of data. But if you take two 3.1 cables and compare their performance, you won't notice much of a difference unless one of the cables was either badly constructed or broken. OTG cable price varies from brand to brand depending upon the quality of the product.
FAQs: OTG Cable
Q. How do I enable OTG on my phone?
Ans. It is not possible to turn off or disable the OTG. It is necessary for you to determine whether or not your device supports OTG. OTG compatibility is required not just in the hardware but also in the software.
Q. Is OTG supported by all phones?
Ans. No, OTG is not supported by each and every mobile device. In order for the OTG to support your phone, it must fulfill a number of certain conditions. Before purchasing a brand-new phone, it is imperative that you first determine whether or not it is compatible with OTG devices. The fact that you have access to this tool at all will be of great assistance, notwithstanding the infrequency with which you will make use of it.
Q. Is it possible to connect OTG to a television?
Ans. Either an HDMI cable or a connector designed for the same purpose is required in order to connect a TV. You won't have any trouble locating this type of cable in any of the nearby marketplaces. There are a variety of connections available on the market that you may purchase if you wish to connect your laptop to the television. Before you go ahead and purchase it, it is important that you double-examine the quality of both the cable and the connection.
