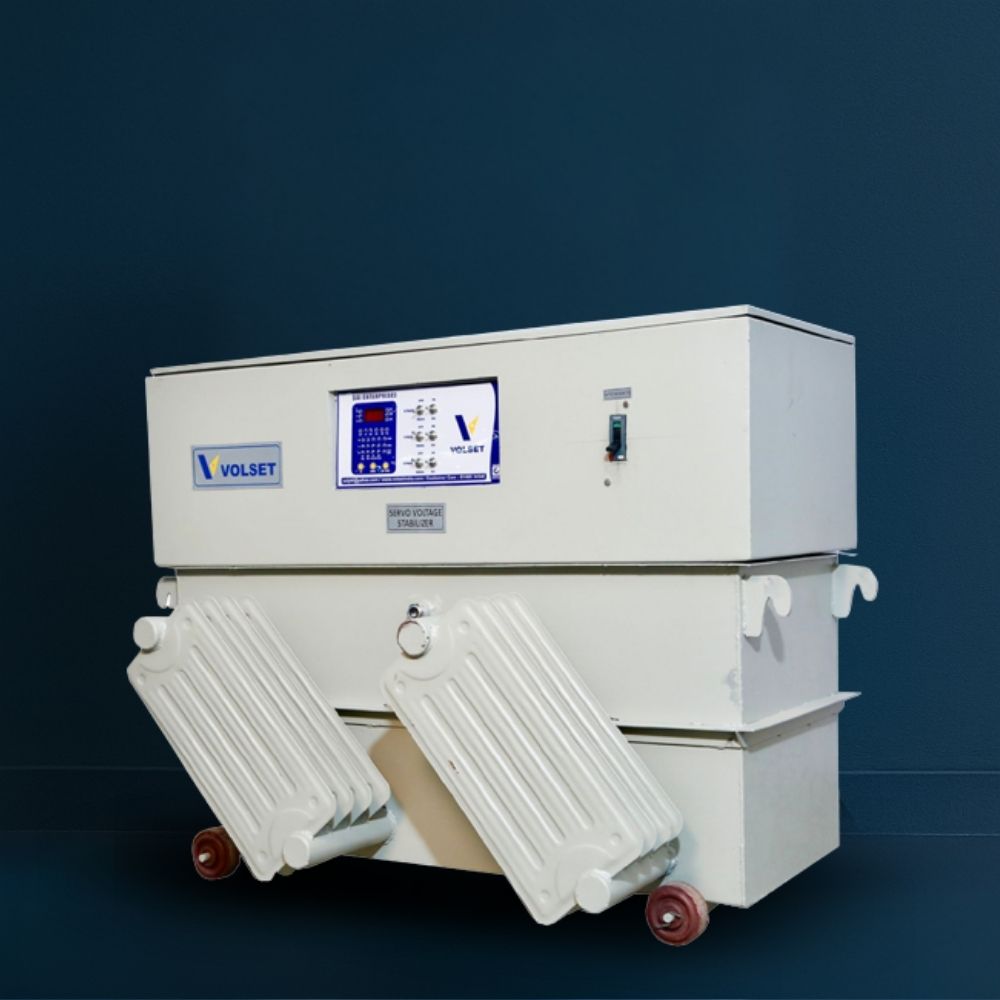

Oil Cooled Voltage Stabilizer

What is an Oil Cooled Voltage Stabilizer?

This type of apparatus can not only protect electrical and electronic equipment from voltage fluctuations, but also continuously regulate and stabilize the output voltage by using oil to cool and insulate the equipment and also to control the heat generated by the equipment so that the appliance can be provided with a constant power regardless of the power supplied. For industrial‚ commercial and manufacturing operations that include electrical equipment requiring a continuous supply of electricity‚ a voltage stabilizer using oil as a coolant is often useda This improves the quality of mains power supplies‚ makes all equipment safer to operate‚ and prolongs the operating life of electrical and industrial equipment that is particularly sensitivea Oil-cooling loses heat better than air-cooling when the equipment is working at full load continuously‚ so it is usually chosen when equipment is in continuous use for 24 hours a day‚ or when there are frequent and large spikes in power demanda

Oil cooled voltage stabilizers (Oil Cooled Rectifiers) are widely used in various industries including manufacturing, pharmaceutical, healthcare, data centre, automation, telecommunications, textile, printing and heavy engineering to provide stable voltage and ensure smooth functionality of electrical equipment. In a number of areas, the grid is unstable, especially that where there are industrial loads that change all day long. The voltage stabilizer with oil cooling assists businesses to ensure their production remains consistent at such times, thereby safeguarding both production and the worth of the equipment they are connected to. This is a good investment for any facility that has sensitive equipment or valuable pieces of machinery.

Working Principle of an Oil Cooled Voltage Stabilizer

Oil cooled voltage stabilizer is based on the principle of AUTO VOLTAGE REGULATION. This process gives buyers a familiarity of why these units are so quick and reliable to change when the supply voltage changes. It continuously measures the input voltage and comparing with the output voltage required. When a variation is detected, the control circuit will send a signal to the servo motor to correct the variation. The carbon brush (or regulating mechanism) attached to the transformer winding is moved by the servo motor. This change changes the voltage outputted by the buck-boost transformer.This adjustment adjusts the voltage output of the buck-boost transformer, to compensate for the higher or lower input voltage.

Insulating oil completely fills the transformer. This oil carries away heat created during operation and insulates internal components from each other. The corrected voltage is then sent to the equipment that is connected. By doing so, an oil-cooled voltage stabilizer contributes to the stability of the output voltage, mitigates voltage fluctuations and ensures the reliable performance of electrical equipment used in industrial applications. This correction process is not only performed when there are large voltage swings, it is an ongoing process. Small variations in the supply voltage are corrected before they affect the machinery to which they are connected, so that operations run smoothly over extended production periods. This kind of stabilizer is especially appropriate for the surroundings in which the equipment is utilized for a lengthy period of time without stopping in an automatic procedure and oil cooling system is utilized.

Key Features and Technical Specifications

An oil cooled voltage stabilizer combines several features designed to deliver reliable, long-term voltage protection.

Key Features

• The automatic voltage regulation of a stable power supply.

• Effectively dissipates heat with oil cooling.

• Energy conservation to the maximum degree of efficiency.

• Protects the equipment from voltage fluctuations.

• Can be operated continuously in industry.

• Well constructed and extremely durable.

• Available in single phase and three phase.

• Ideal for high capacity industrial use

• Protects against overload and short circuit faults

• Specific industry requirements – bespoke equipment design.




Technical Specifications:

Components of an Oil Cooled Voltage Stabilizer

An oil cooled voltage stabilizer is built from several key components that work together to sense, correct, and maintain stable voltage output.

Oil Tank

The biggest enclosure of the stabilizer is the oil tank. It contains the transformer and insulating oil to offer mechanical protection of internal components and aid to ensure safe and reliable operation.

Servo Motor

The position of the carbon brush or the voltage adjustment mechanism is adjusted by the servo motor. Takes a signal from the control circuit and corrects the voltage accordingly.

Buck-Boost Transformer

The buck-boost transformer increases or decreases the voltage when the input voltage changes. Provides a constant voltage to the appliances or devices it supplies.

Insulation System

The insulation system is made of high quality insulation material and the transformer oil, which is used to form an electrical insulation system between the internal components of the transformer and to reduce the risk of failure of the insulation

Control Circuit

The control circuit is used to monitor the input voltage and output voltage continuously. It turns on the servo motor when voltage is applied that is not within specified limits.

Cooling Oil

The insulating oil receives as well as dissipates the heat produced by the transformer and other electrical units. It is also an additional source of electrical insulation for the internal system.

Types of Oil Cooled Voltage Stabilizers

There are different types of oil cooled voltage stabilizers.There are several types of voltage stabilizers that are cooled by oil.

There are several types of oil cooled voltage stabilizers that are available and are suitable for various loads, phase needs and operating conditions.

Single-Phase Oil Cooled Voltage Stabilizer

These stabilizers can be applied to smaller sizes of commercial and industrial appliances and machinery which are powered by a single phase power supply.

Three-Phase Oil Cooled Voltage Stabilizer

The stabilizers are generally used in the heavy duty industry, manufacturing plants, factories and other installations that demand regulated three phase power.

Servo Controlled Oil Cooled Voltage Stabilizer

These stabilizers employ a correction mechanism which is based on a servo motor to maintain a stable output voltage for connected equipment and automatically adjusts the input voltage.

Oil Cooled Automatic Voltage Stabilizer

These stabilizers automatically sense the changes in voltage of the input and rectifies them automatically without manual intervention, hence they are capable of operating continuously even in industry.

High-Capacity Oil Cooled Voltage Stabilizer

These stabilizers are built for heavy-duty industrial environments, ensuring stability in power provision for high-capacity equipment and appliances.

Applications of Oil Cooled Voltage Stabilizers

Oil cooled voltage stabilizers are ideal for every electricity stabilisation requirement, from large industrial applications, to commercial buildings, as well as special projects involving infrastructure.

Industrial Applications

Oil-cooled voltage stabilizers are widely used in the following places:

• Manufacturing plants
• CNC machines
• Pharma industries
• Textile factories
• Printing plants
• Food processing industries
• Chemical factories
• Heavy engineering industries
• Injection moulding machines
• Industrial automation systems


Commercial Applications

These stabilizers are commonly installed in:

• Hospitals
• Data processing centres
• IT setups
• Offices
• Shopping centres
• Banks
• Educational institutions
• Laboratories
• Commercial buildings


Other Applications

• Additional applications include:
• Solar power systems
• Railway systems
• Defence equipment
• Broadcasting systems
• Telecom infrastructure
• A set of instruments for measuring and testing.
• Renewable energy projects
• Large commercial installations


Benefits of Using an Oil Cooled Voltage Stabilizer

There are several operational and financial benefits for businesses to consider when investing in an oil cooled voltage stabilizer, especially for businesses that operate around the clock with continuous industrial processes or have valuable assets that they need to protect.

• Improved equipment protection.

Electrical equipment voltage protection from voltage fluctuation, overvoltage and undervoltage.

• Better cooling performance

Insulating oil is effective in releasing heat in long-term, heavy-load operation.

• Increased safety

Oil acts as an electrical insulator between components, helping to ensure safe operation.

• Extended equipment life

The stable power supply decreases electrical stress and increases the machine's life.

• Reduced maintenance costs

Damage protection may reduce repair, replacement and maintenance costs, which are related to voltage damage.

• Increased efficiency

The electrical and industrial machinery can operate more consistently with a stable voltage supply.

• Continuous operation

Designed for applications that demand high performance and long operating life with reliability in voltage regulation.

• Flexibility in installation

Available in various capacities, phases, voltages and custom set-ups.

Buying Guide

It is important to not only find the right stabilizer, but the right one for your load and power requirements. Before you buy, here are some things to look for:

• Required capacity. Match stabilizer to the overall connected load.
• Input voltage range. Test that it accounts for local supply uncertainties.
• Required output voltage. Compare this to the equipment's operating requirements.
• Voltage regulation accuracy. Search for good tolerances on correction.
• Single or 3 phase needed. Select depending on your electrical system.
• Cooling method. The cooling suits for oil are heavy and heavy continuous loads.
• Load type. Verify if the device is compatible with resistive, inductive or mixed load.
• Transformer quality. The better the transformers, the more reliable their long-term performance.
• Winding material. Typically, copper windings are more efficient.

Protection features. An oil cooled voltage stabilizer is an electrical device designed to regulate and stabilize the output voltage and to protect electrical and electronic equipment from over voltage. The stabilizer is provided with an oil as a cooling and insulating medium to control the heat produced in continuous operation. This ensures a uniform power supply to the connected equipment, even during fluctuations in input voltage.

The oil cooled voltage stabilizer is found in many applications such as industrial, commercial, manufacturing and heavy duty where electrical systems require a reliable and stable power supply. They boost the quality of electricity supply, safety of equipment and prolong the operating life of sensitive electrical and industrial machines. Under continuous and high load conditions, the oil cooling process is superior to air cooled cooling process in terms of heat dissipation. This is why it is a popular option for facilities with 24-hour operations or for those that regularly process high amounts of electricity. Oil cooled voltage stabilizers are commonly used in various industries such as manufacturing, pharmaceutical, healthcare, data centre, automation, telecommunications, textile, printing, and heavy engineering to ensure stable voltages and proper functioning of electrical machinery.

There are many areas in which the grid is unstable, especially when industrial loads are changing during the day. The voltage stabilizer provides a smooth and stable power supply to the equipment, which helps businesses to avoid the risk of voltage sags or brownouts that can affect production quality.By using an oil cooled voltage stabilizer, businesses can ensure that their equipment operates at a steady voltage level, even when there are fluctuations in power supply. This would make it a sensible investment for any equipment with sensitive or costly equipment.

• Efficiency. The long term energy savings are greater in the case of higher efficiency.
• Installation requirements. Take into account space, ventilation and wiring requirements.
• Maintenance requirements. Less downtime translates to simpler maintenance.
• Certifications. Check that the unit complies with appropriate safety codes.
• Warranty. Check out the terms and periods of coverage.
• Spare parts availability. Accessibility of parts ensures quick repairs.
• Supplier reputation. Use suppliers who have experience in their business.
• Customization options. Good when loads and/or phases change.


Oil Cooled Voltage Stabilizer Price

The cost of an oil cooled voltage stabilizer is dependent on various parameters including capacity, type of winding, voltage range, power rating, number of phases, cooling system, voltage accuracy, insulation class and other factors. Price can also depend on additional features offered by the manufacturer including protection system, control panels, digital display and other features as per custom designs for industrial applications. The cost of an oil cooled voltage stabilizer will be determined by a number of factors that include capacity, type of winding, input voltage range, output voltage, number of phases, cooling, voltage accuracy, insulation class, protection, among others. Other factors that could affect the cost include protection system, digital control system, monitoring system, among others. Additional costs may also include installation, commissioning and maintenance services provided by the seller, which should be checked when comparing different quotation offers. This will give a better understanding of the total cost of purchase.
