Impact Pulveriser Gmp

Impact Pulveriser GMP Model :

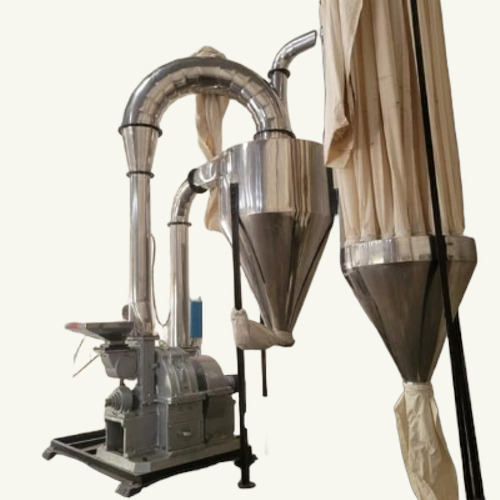

The D.P. Impact Pulveriser / Pulverizer is a versatile grinding unit of heavy and rugged construction and built for continuous operation day after day. The unit is especially designed for the medium fine, and fine size reduction.

The industrial pulverizer meet most capacity requirements and lend themselves to a wide degree of adjustments with fineness of the finished product ranging from about 60 mesh to bulk passing through 325 mesh, depending on a considerable extent to the particular material being handled. Unlike an ordinary hammer mill, it has no screens to break, wear out or clog in the crushing chamber. The D. P. Impact Pulverizers combines grinding, classifying and conveying all in one single unit.


Operating Principle of Impact Pulveriser
The D.P. Impact Pulveriser consists of an encased rotor carrying swing hammers, whizzer classifier for fineness regulation, and Blower Fan mounted on a solid shaft. Raw material to be pulverised enters the crushing chamber through the hopper and automatic rotary feeder. The impact of the hammer on the feed material against the Liner plates reduces it into fine powder. The ground material is carried towards the whizzer classifier for classification and the over size particles are rejected by the classifier and returns to the crushing chamber for further grinding. The classified material is then conveyed into the cyclone for collection and bagging.
