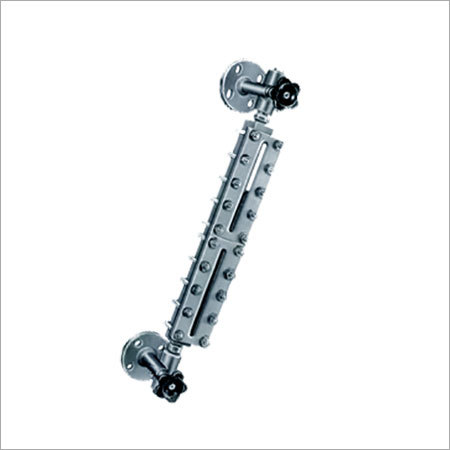

Transparent And Reflex Level Gauge

A transparent and reflex level gauge is a device used to measure the level of liquid in a tank or vessel. It consists of a transparent tube or chamber with a series of prisms or reflectors that create a visible indication of the liquid level.

Transparent and reflex level gauges offer several advantages over other types of level gauges, including: * High visibility: The transparent tube or chamber allows for easy viewing of the liquid level. * Accuracy: The prisms or reflectors create a precise and repeatable indication of the liquid level. * Versatility: Transparent and reflex level gauges can be used in a wide range of applications, including tanks, vessels, and pipes. * Durability: The materials used in transparent and reflex level gauges are resistant to corrosion and wear, ensuring a long service life.

There are two main types of transparent and reflex level gauges: * Reflex level gauges: These gauges use a series of prisms or reflectors to create a visible indication of the liquid level. The prisms or reflectors are positioned at an angle to the transparent tube or chamber, which allows light to be reflected back to the viewer. * Transparent level gauges: These gauges use a transparent tube or chamber without any prisms or reflectors. The liquid level is visible through the transparent material.

When choosing a transparent and reflex level gauge, it is important to consider the following factors: * The type of liquid being measured * The pressure and temperature of the liquid * The desired accuracy * The visibility requirements * The available space * The cost

The installation of a transparent and reflex level gauge is a relatively simple process. The following steps provide general guidelines for installing a transparent and reflex level gauge: 1. Choose a suitable location for the level gauge. The location should be easily accessible and provide a clear view of the liquid level. 2. Mount the level gauge to the tank or vessel using the provided brackets or hardware. 3. Connect the level gauge to the tank or vessel using the appropriate fittings. 4. Fill the tank or vessel with liquid and check the level gauge for accuracy.
