Robotic Welding System

Reach1500 mm

Payload5 kg

Repeatability0.1 mm

Welding processesMIG, TIG

Power supply220V

Weight100 kg

MOQ1 Piece/Pieces

FeaturesHigh Quality

Frequency60 Hertz (HZ)

Drive TypeElectric

ColorRed And Yellow

Automation GradeAutomatic

UsageIndustrial

MOQ1 Number

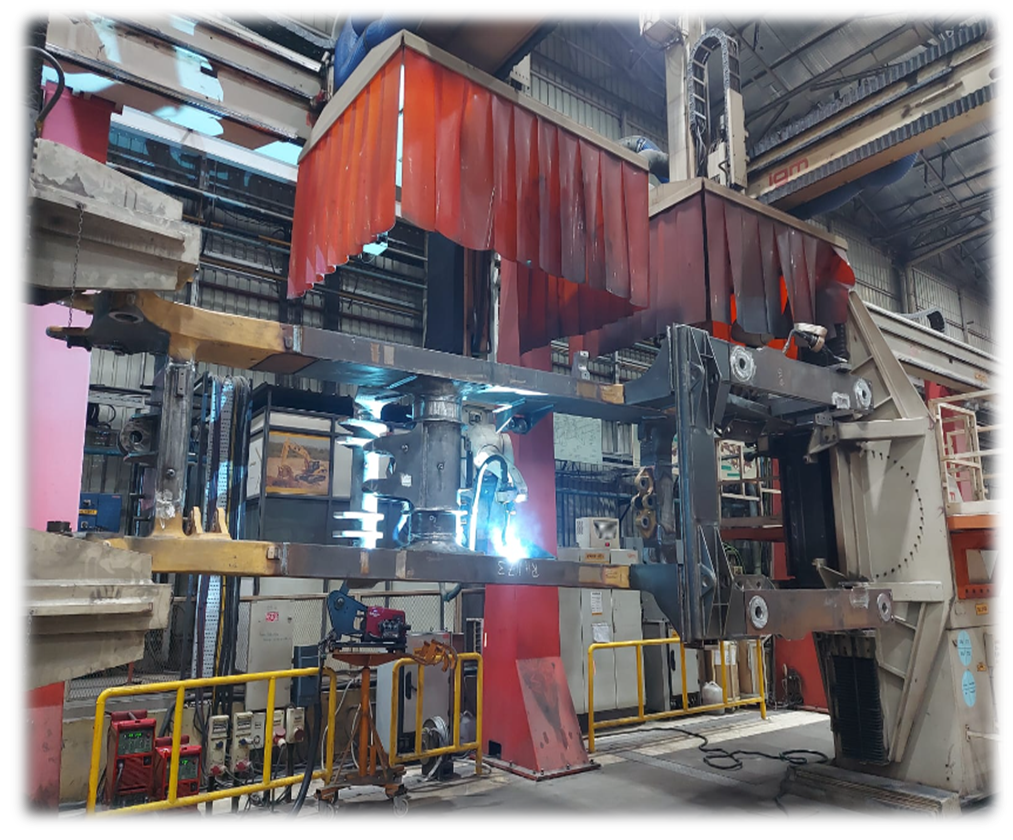

Product TypeVF Gantry series

Warranty1 Year

AttributesStrong, Durable, Easy To Operate, Rust Proof, Consume Less Power

MOQ10 Unit/Units

UsageIndustrial

MaterialStainless Steel

SizeDifferent Sizes Available

WarrantyYes

MaterialRaw Materials

AutomationRobotic

ApplicationWelding

StandardsInternational

LocationGhaziabad

TypePositions

MOQ1 Cubic Centimeter/ Cubic Centimeters

Product TypeThe specifications of a robot welding machine can vary depending on the model and manufacturer, but typical features include:1. **Robotic Arm Specifications**: - **Degrees of Freedom**: Usually 6 axes for flexibility in movement. - **Reach**: Typically ranges from 1.5 to 3 meters, depending on the arm's design. - **Payload Capacity**: Usually between 5 to 50 kg, depending on the application and robot size.2. **Welding Tool Specifications**: - **Welding Type**: MIG, TIG, or plasma welding. - **Welding Voltage**: Generally adjustable, ranging from 15V to 40V for MIG or TIG welding. - **Welding Current**: Adjustable from 50A to 500A or more, depending on the welding process.3. **Control System**: - **Programming Interface**: Includes teach pendants or computer-based systems for programming and control. - **Software**: Advanced programming software for path planning, welding parameters, and diagnostics.4. **Sensors and Feedback**: - **Position Sensors**: For precise location tracking and adjustment. - **Arc Sensors**: For monitoring and adjusting the welding arc in real-time.5. **Safety Features**: - **Enclosures**: Protective barriers to shield operators from welding sparks and UV radiation. - **Emergency Stops**: Safety buttons to halt operations in case of emergencies.6. **Power Requirements**: - **Voltage**: Typically operates on standard industrial voltages such as 230V, 400V, or 480V AC. - **Power Consumption**: Varies based on the robot and welding equipment, generally between 2 to 10 kW.7. **Operating Environment**: - **Temperature Range**: Designed to operate in industrial environments, often between 5i?1/2C to 40i?1/2C. - **Dust and Contamination Protection**: IP rating (Ingress Protection) to indicate resistance to dust and water.These specifications ensure the robot welding machine performs effectively, efficiently, and safely across various industrial applications.

General UseIndustrial

PLC ControlNo

Bar FeederNo

Power SourceElectric

RigidityHigh

MOQ5000 Piece/Pieces

WeldingMIG, TIG

Warranty1 Year

PhaseSingle Phase

UsageIndustrial

ConditionNew

SizeVarious Sizes Available

MOQ10 Unit/Units

FunctionSemi Automatic

Cooling MethodAir Cooling

UsageIndustrial

EfficiencyHigh

ConditionNew

MOQ1 Unit/Units

UsageIndustrial

Weight150-300 Kilograms (kg)

Product TypeWelding System

MaterialStainless Steel

WarrantyYes

MOQ10 Unit/Units

Product TypeDouble Axis Welding Positioner

Length1.5 Meter Meter (m)

Width1 Meter Meter (m)

Weight1 Ton Kilograms (kg)

UsageIndustrial

SizeCustomized

Reach1400mm

Payload15kg

Repeatability0.1mm

Weight280kg

Power3-phase AC

Voltage200-230V

MOQ1 , Piece/Pieces

UsageIndustrial

ColorBlue

Product TypeWELDING ROBOTIC

TypeWelding Robot

ConditionNew

Motor TypeDC Motor

ColorBlue

MaterialSteel Alloy

Weight150 kg

Reach1.5m

Power3-phase AC

Voltage480V

Max load6kg

Axes6-axis

J1 range-170 to +170

J2 range-90 to +90

J3 range-80 to +90

J4 range-100 to +100

Welding Joint MaterialStainless Steel

Welding Wire1Kg/Disk

Tube Diameter Range100*100Mm

Welding TypeFillet, Flat

AutomationAutomatic

ApplicationTube-Tube Sheet

MOQ1 Piece/Pieces

Product TypeRobotic Welding System

Usageindustrial

Sizecustomize

Colorsilver

MaterialStainless Steel
