Precision Angle Plate

MOQ1 Piece/Pieces

ColorBlue

UsageMilling & Grinding Machine

MaterialIron

ApplicationIndustrial

SizeStandard

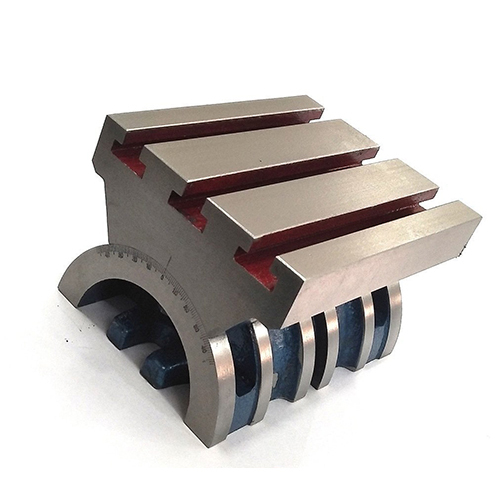

Product TypeNICON Adjustable Angle Plate

MOQ1 Piece/Pieces

Product TypePrecision Angle Plates

MaterialStainless Steel

ComputerizedNo

Automatic GradeSemi-Automatic

Control SystemHuman Machine Interface

Drive TypeHydraulic

MOQ2 Piece/Pieces

Machine TypeA tilting table is a versatile tool widely used in various industrial applications where angular positioning of the workpiece is essential. Its primary function is to tilt heavy or complex components to a desired angle for ease of machining, welding, assembly, or inspection. In the manufacturing sector, tilting tables are commonly integrated with CNC milling machines, drilling machines, and grinding machines to enable precise angular operations. In welding and fabrication shops, they allow operators to comfortably position jobs for high-quality welds. Tilting tables are also extensively used in precast concrete production, where large concrete panels are cast flat and then tilted vertically for removal and installation. Additionally, they are useful in inspection setups, electrical panel fitting, and sheet metal work. In the medical field, tilting tables are used in diagnostic procedures such as tilt table tests. Depending on the application, they can be manual, motorized, or hydraulic, and may also include rotation features for multi-axis functionality.

ColorSILVER/BULE

Power Source220 V

Control SystemTilting tables come with different control systems based on their type. Manual models use handwheels or levers for angle adjustment. Motorized versions feature push-button or switch-based controls for easy operation. Advanced models use PLC or HMI-based systems for automatic tilt control, preset angles, speed adjustment, and remote operation. Hydraulic tables include valves and regulators for smooth movement. The control system ensures precision, safety, and ease of use in various industrial applications.

FeaturesTilting tables are designed for versatility, strength, and precision. Key features include a tilt range of 0 to 90 , heavy-duty construction (usually cast iron or steel), and T-slots for secure clamping. They offer smooth manual or motorized tilting, angle graduation or digital display, and locking mechanisms for safe positioning. Advanced models may include PLC/HMI control, hydraulic or electric actuators, and custom load capacities ranging from 100 kg to several tons.

Automation GradeTilting tables are available in different automatic grades based on the level of control and automation required for specific applications. The most basic is the manual tilting table, where the angle is adjusted using a handwheel or screw mechanism. For higher efficiency and precision, semi-automatic tilting tables feature motorized tilt controlled by simple switches or foot pedals, often with limiters or angle stops. The most advanced are fully automatic tilting tables, which are equipped with electric motors, hydraulic actuators, and programmable control panels (PLC or HMI-based systems). These tables allow pre-set angles, automatic tilt sequences, and remote operation, ensuring consistent results in repetitive tasks like CNC machining, welding, or concrete casting. The choice of automatic grade depends on workload, job precision, frequency of use, and integration with other machinery.

ColorSilver

Product TypePrecision Angle Plate

Accuracy+/-0.01 mm

DimensionsVariable

FeaturesHigh precision, Rigid design, Durable plates, Superior performance, Accurate shaping

Hardness50-60 HRC

MaterialHigh tensile cast iron

Surface FinishFine ground

MOQ5 Piece/Pieces

ColorGrey

TypeOther, Angle Plates

UsageIndustrial

MaterialMetal

Power SourceNo

SizeCustomized

Accuracy0.01mm

DimensionsVariable

FeaturesPrecise angles, Durable material, Versatile clamping, Accurate machining, Easy setup, Reliable performance

MaterialCast iron

Mounting HolesMultiple

Surface FinishGround

Accuracy0.005mm-0.010mm

ColorSilver

FeaturesHigh Accuracy, Precise Machining, Durable Material, Versatile Use, Easy Clamping, Robust Design

Hardness60 HRC

HolesM6 & M8 tapped

MaterialAlloy Steel

MOQ1 Piece/Pieces

ColorSilver

UsageWorkpiece holding and positioning

TypeOther, Machine tool accessory

MaterialMetal

Product TypeAdjustable Angle Plate

Product DescriptionAdjustable Angle Plate

MOQ1 Piece/Pieces

Colorsilver

Materialcast iron

DimensionsL 150 X W125 X H 112 Millimeter (mm)

AccuracyHigh Precision

ColorLight Green

DimensionsVaried Sizes

FeaturesPrecise Angles, Durable Material, Accurate Measurements, Easy To Use, Versatile Design, High Quality, Cost Effective

HardnessSuitable

MaterialCast Iron
