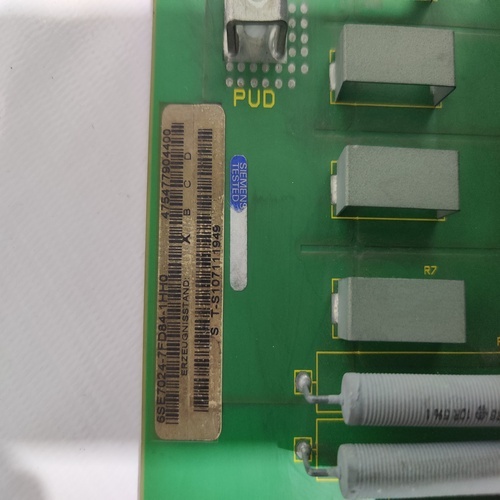

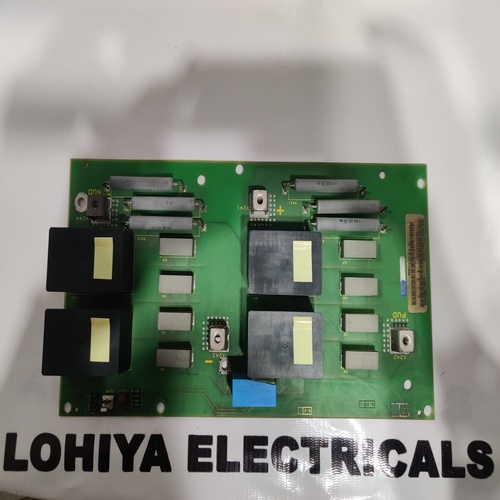

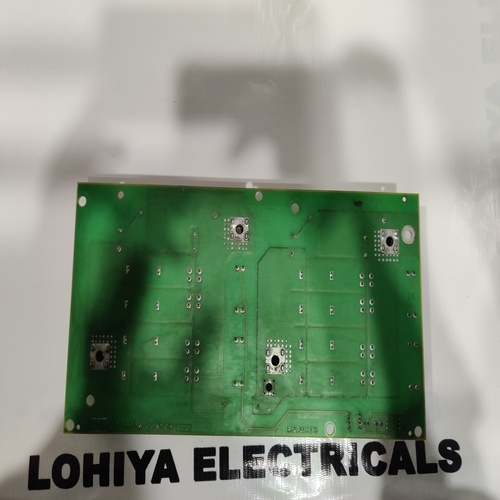

Siemens 6se7024-7fd84-1hh0 Inverter Charging Board Relay - High-performance Relay Module , Compatible With Siemens Inverter Systems
Price: (Approx.)
Get Latest Price
Minimum Order Quantity :
1 Piece
Brand Name :
Siemens
In Stock
Product Specifications
| Cooling System | Passive, no active cooling required |
| Current Rating | 3A |
| Rated Insulation Voltage | 250V AC |
| Rated Current | 3A (Relay) |
| Protection Level | Other, Conformal Coated for moderate protection |
| Base Material | Other, FR4 Epoxy Glass |
| Cabinet Material | NA (open board) |
| Features | OEM replacement; Siemens genuine part; charge relay function for inverter |
| Thickness | Approx. 1.6 mm PCB |
| Operating Voltage | 24V DC / 230V AC |
| Connectivity Type | Screw terminal / pin header connectors |
| Components | Relay, resistors, capacitors, connectors, diodes |
| Way | Single Way Relay |
| Rated Operation Voltage | AC 230V / DC 24V |
| Cover Material | Other, None / NA (Open PCB type) |
| Control System | Relay-based logic circuits |
| Protection Class | Class I (when installed in system) |
| Product Type | Other, Inverter Charging Board Relay |
| Material | Other, High-grade PCB with electronic and electromechanical components |
| Surface Finish | Other, Solder mask finish |
| Standard | Siemens Industry Standard |
| Surface Color | Other, Green PCB with white marking |
| Rated Voltage | DC 24V / AC 230V (relay contact) |
| Frequency (MHz) | 50/60 Hz (inverter frequency support) |
| Maximum Output Current | Up to 3A (relay load rating) |
| Dimension (L*W*H) | Approximately 140mm x 70mm x 30mm |
| Application | For Siemens 6SE7024 Series Inverter Charging Circuits |
| IP Rating | Other, NA (Suitable for controlled electrical enclosure) |
