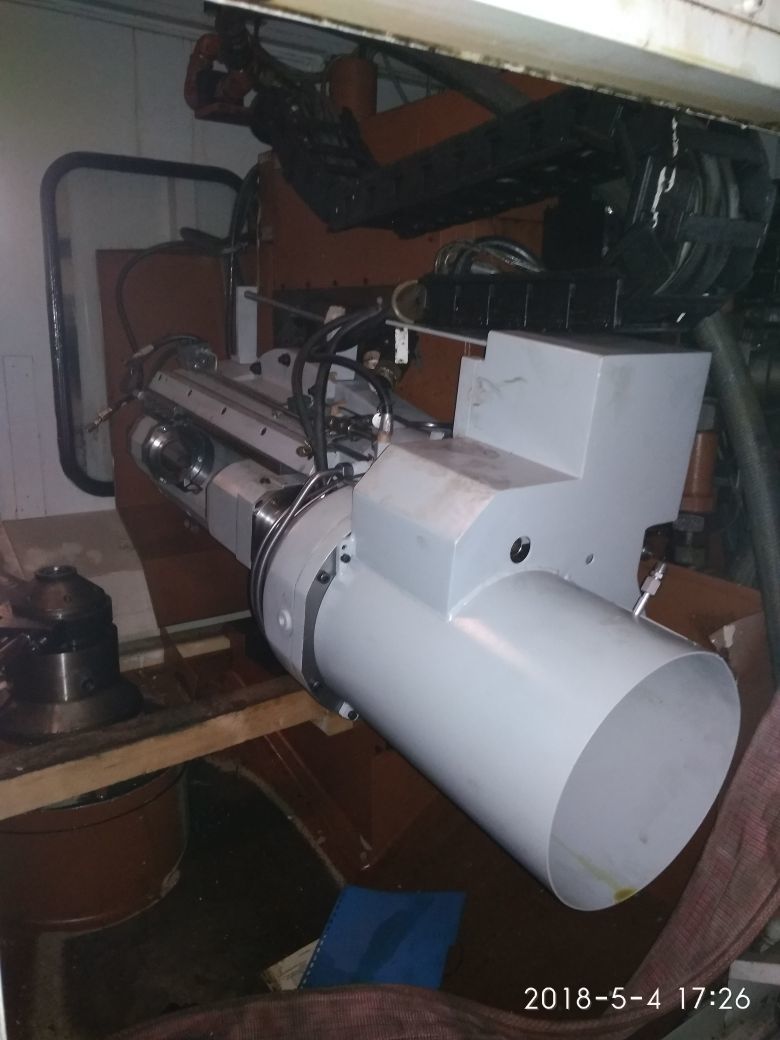

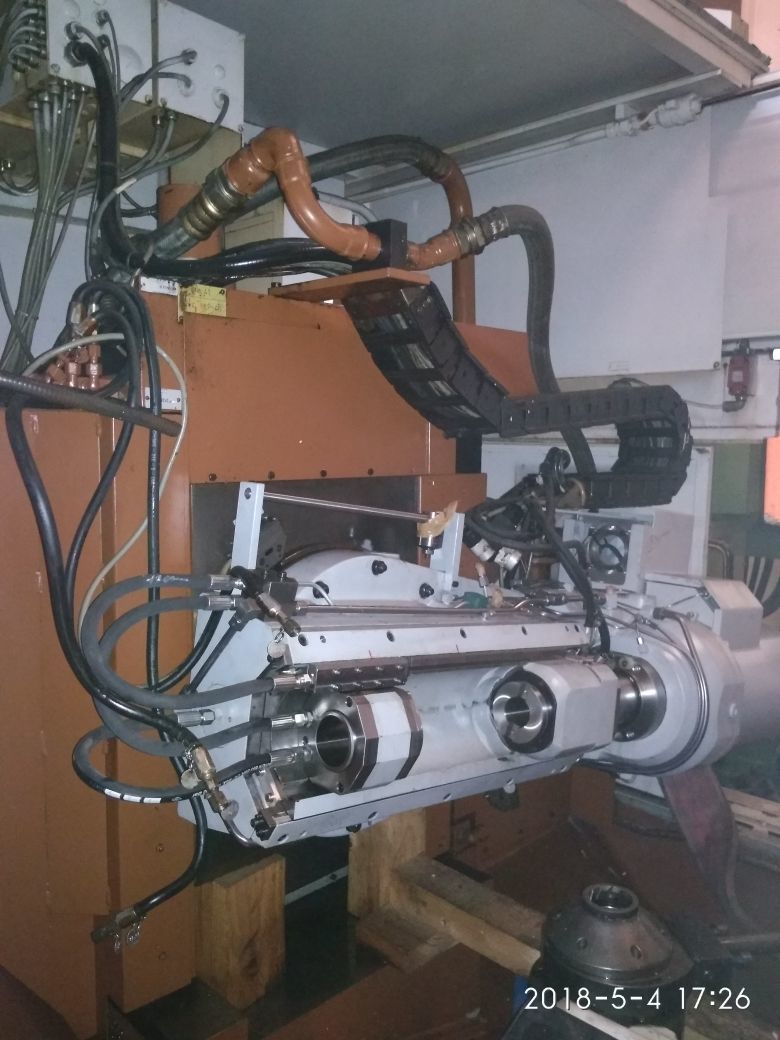

Pfauter Pe 150 6 Axis Cnc Gear Hobber Machine - Max Workpiece Diameter: 6", Max Hob Diameter: 5", Reliable Performance, High Precision, Efficient Operation

Machine Id:962
Model:PE 150 6 AXIS CNC GEAR HOBBER
Make:Pfauter
Year:1993
Dimensions:
Power:
Location:

Category:Gear Hobbers CNC
Serial No:
Country:Germany
Type of Machine:CNC GEAR HOBBER , CHOICE OF 8 SIMILAR MACHINES
Weight:0.0
Asking Price:onrequest

Specification:
This machine is being offered in as is condition. We can also offer it with a optional rebuild, recontrol or recertification. All recontrolled and recertified machines are fully cleaned. All moving slides, spindles and parts handling systems are inspected for problems. Any gibs or adjustable backlash systems are adjusted to the best possible settings. All hydraulic, coolant, lubrication and pneumatic systems are checked for proper functionality and leaks. All filters are replaced. All worn hoses, broken cables, connectors, buttons, lamps and wires are replaced. All guarding is installed and checked. All machine cycles are tested. Parts are cut to verify the machine capability. Charts from the test cutting are documented for your viewing.

Excellent 6 axis Fanuc 16m Gear Hobber
Machine under power

Maximum Workpiece Diameter:6"
Maximum Pitch (Module) In Steel With A Tensile
Strength Of Approx. 38 tons/sq. In.: D.P. 10
Maximum Axial Slide Travel: 6"
Minimum Center Distance Hob/Workpiece:4"
Maximum Center Distance Hob/Workpiece: 6"
Worktable Diameter: 6.29"
Index Worm Gear Diameter: 6.6"
Maximum Hob Head Swivel Angle:
- Standard: +/-45 Degrees
- Optional: + 30 Degrees/- 140 Degrees
Maximum Hob Diameter: 5"
Maximum Hob Length: 8.6"
Maximum Hob Shift: 6.7"
