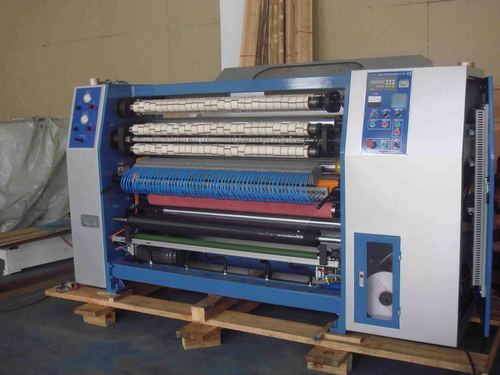

Following are the Main Features of AT-605 BOPP Tape Slitter Rewinder Machine:
1、Centralized control panel: All operation controls for this machine are centralized in a control panel.
2、Three-step length setting: This length setting provides extremely smooth rewinding operation to give accurate rewinding length.
3、Automatic shaft change: Once the rewinding operation is accomplished, the machine will automatically perform shaft changes for convenient and efficient operations.
4、Crowed stretch roll: The stretch roll is specially designed with a crowned shape for accurate tape tracking and proper tension control that completely eliminates material wrinkling.
5、Pneumatic knives: This unit is fitted with 3" pneumatic knives, permitting the slitting of a variety of tapes. The knife positions can be adjusted in left/right directions and the pressure of the pneumatic knives can be adjusted to suit tape material variation.
6、Keep noise to minimum: The jumbo roll's pressure roll reduces noise to a minimum while in operation.
MAIN MACHINE SPECIFICATION:
1. Max. Working Width: 1300 mm
2. Max. Unwind Diameter : 800 mm
3. Max. Rewind Diameter: 4 shafts turret 150 mm
4. rewind 300 mm : (76.2 mm paper core)
5. Slitting Width: 12 - 1300 mm
6. Rewind Core Diameter: 25.4 MM (plastic core)
& 76.2 MM (paper core)
7. Slitting Blade: Pneumatic Knife & Razor Blade
8. Machine Speed: 0-180 m/min
9. Power (voltage): 380V 3 Phas
Specially for making Stationery tapes /OPP packing tapes.
